| Part Number | 8T49N004A-030NLGI | 8T49N004A-033NLGI | 8T49N004A-034NLGI | 8T49N004A-037NLGI | 8T49N004A-039NLGI | 8T49N004A-050NLGI | 8T49N004A-060NLGI | 8T49N004A-070NLGI | 8T49N004A-030NLGI8 | 8T49N004A-035NLGI | 8T49N004A-000NLGI |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | Clock Generator | - | - | - |
| PLL | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass |
| Input | HCSL, LVDS, LVPECL, Crystal | Crystal | Crystal | HCSL, LVDS, LVPECL | HCSL, LVDS, LVPECL | Crystal | Crystal | HCSL, LVDS, LVPECL | HCSL, LVDS, LVPECL, Crystal | Crystal | Crystal |
| Output | LVPECL | LVPECL | LVPECL | LVDS, LVPECL | LVDS, LVPECL | LVPECL | LVPECL | LVCMOS, LVDS, LVPECL, LVTTL | LVPECL | LVPECL | LVPECL |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 2:4 | 1:4 | 1:4 | 1:4 | 1:4 | 1:4 | 1:4 | 2:4 | 2:4 | 1:4 | 1:4 |
| Differential - Input:Output | Yes/Yes | No/Yes | No/Yes | Yes/Yes | Yes/Yes | No/Yes | No/Yes | Yes/Yes | Yes/Yes | No/Yes | No/Yes |
| Frequency - Max | 312.5MHz | 312.5MHz | 156.25MHz | 212MHz | 250MHz | 150MHz | 150MHz | 2.5GHz | 312.5MHz | 625MHz | 200MHz |
| Divider/Multiplier | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No |
| Voltage - Supply | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 2.625V, 3.135V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

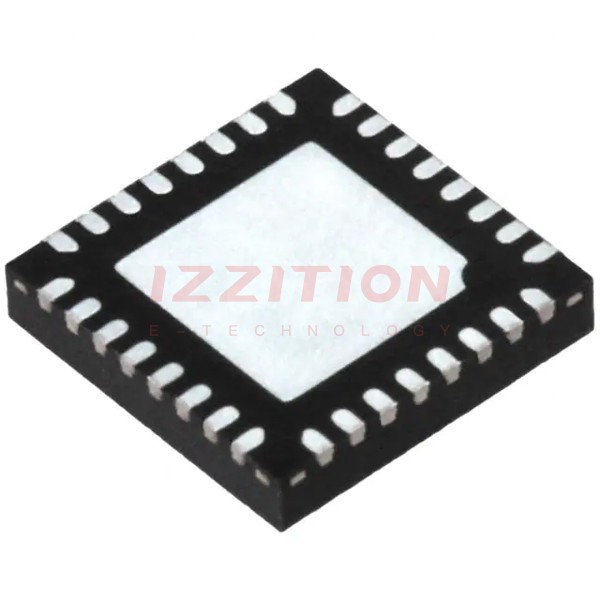

| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VFQFN (5x5) | 32-VFQFN (5x5) | 32-VFQFPN (5x5) | 32-VFQFN (5x5) | 32-VFQFN (5x5) | 32-VFQFN (5x5) | 32-VFQFN (5x5) | 32-VFQFPN (5x5) | 32-VFQFN (5x5) | 32-VFQFN (5x5) | 32-VFQFN (5x5) |
