Please send RFQ , we will respond immediately.

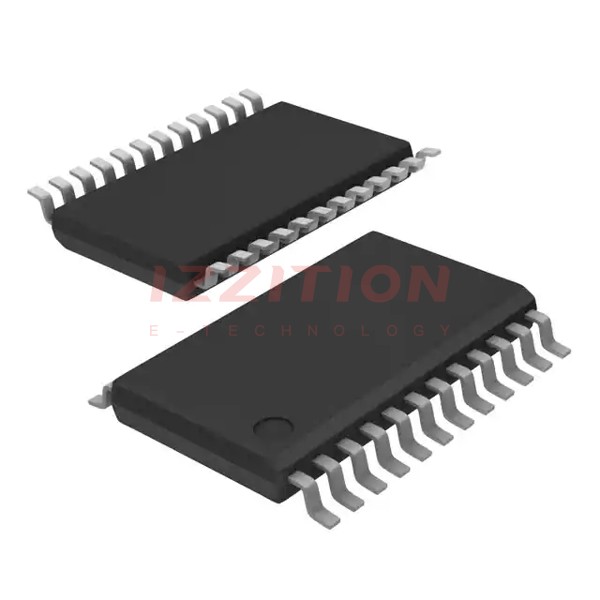

| Part Number | 8536AG-01LFT | 8546AG-01LFT | 8536AG-02LFT | 8533AG-01LFT | 8535AG-01LFT | 8536AG-01LF |
|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Active | Active | Active | Obsolete |
| Type | Fanout Buffer (Distribution), Multiplexer | Fanout Buffer (Distribution), Multiplexer | Fanout Buffer (Distribution), Multiplexer | Fanout Buffer (Distribution), Multiplexer | Fanout Buffer (Distribution), Multiplexer | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 3:6 | 3:6 | 3:6 | 2:4 | 2:4 | 3:6 |
| Differential - Input:Output | Yes/Yes | Yes/Yes | No/Yes | Yes/Yes | No/Yes | Yes/Yes |
| Input | HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL, SSTL, Crystal | HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL, SSTL, Crystal | LVCMOS, LVTTL, Crystal | CML, HCSL, LVDS, LVHSTL, LVPECL, SSTL | LVCMOS, LVTTL | HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL, SSTL, Crystal |
| Output | LVPECL | LVDS | LVPECL | LVPECL | LVPECL | LVPECL |
| Frequency - Max | 700 MHz | 266 MHz | 266 MHz | 650 MHz | 266 MHz | 700 MHz |
| Voltage - Supply | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 2.375V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) | 24-TSSOP (0.173", 4.40mm Width) | 24-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP | 24-TSSOP | 24-TSSOP | 20-TSSOP | 20-TSSOP | 24-TSSOP |
