| Part Number | 8535AK-01LFT | 85354AK-01LFT | 8535AG-01LFT | 8535AK-01LF |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| Type | Fanout Buffer (Distribution), Multiplexer | Multiplexer | Fanout Buffer (Distribution), Multiplexer | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 1 | 2 | 1 | 1 |
| Ratio - Input:Output | 2:4 | 2:1, 1:2 | 2:4 | 2:4 |
| Differential - Input:Output | No/Yes | Yes/Yes | No/Yes | No/Yes |
| Input | LVCMOS, LVTTL | CML, LVDS, LVPECL | LVCMOS, LVTTL | LVCMOS, LVTTL |
| Output | LVPECL | LVPECL | LVPECL | LVPECL |
| Frequency - Max | 266 MHz | 2.5 GHz | 266 MHz | 266 MHz |
| Voltage - Supply | 3.135V ~ 3.465V | 2.375V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

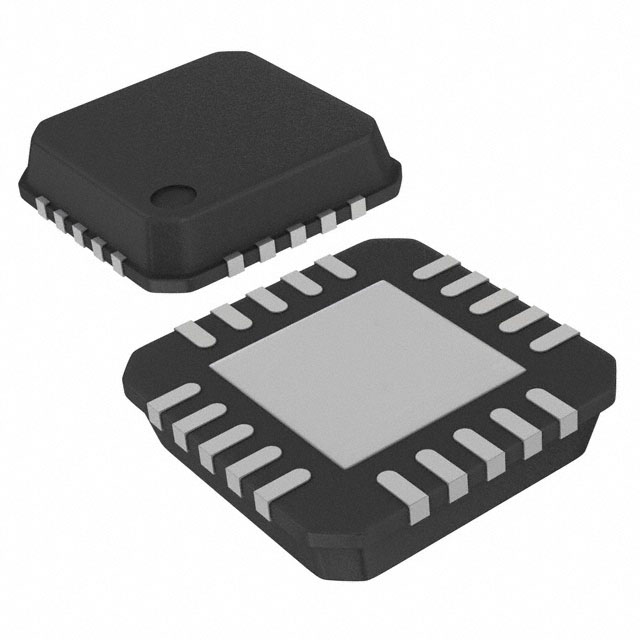

| Package / Case | 20-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VFQFPN (4x4) | 16-VFQFN (3x3) | 20-TSSOP | 20-VFQFPN (4x4) |
