Please send RFQ , we will respond immediately.

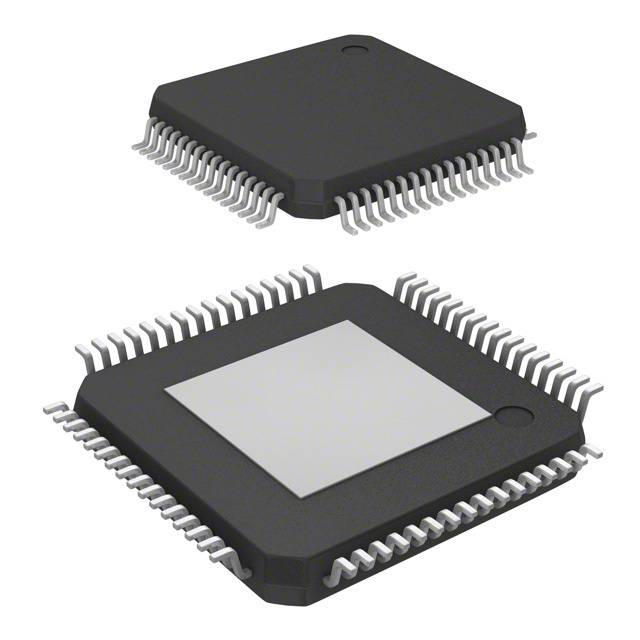

| Part Number | 8534AY-01LFT | 8531AY-01LFT | 8532AY-01LFT | 8534AY-01LF |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Fanout Buffer (Distribution), Multiplexer | Fanout Buffer (Distribution), Multiplexer | Fanout Buffer (Distribution), Multiplexer | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 2:22 | 2:9 | 2:17 | 2:22 |
| Differential - Input:Output | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes |
| Input | CML, HCSL, LVDS, LVHSTL, LVPECL, SSTL | CML, HCSL, LVDS, LVHSTL, LVPECL, SSTL | CML, HCSL, LVDS, LVHSTL, LVPECL, SSTL | CML, HCSL, LVDS, LVHSTL, LVPECL, SSTL |
| Output | LVPECL | LVPECL | LVPECL | LVPECL |
| Frequency - Max | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Voltage - Supply | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V |
| Operating Temperature | 0°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-TQFP Exposed Pad | 32-LQFP | 52-LQFP | 64-TQFP Exposed Pad |
| Supplier Device Package | 64-TQFP-EP (10x10) | 32-TQFP (7x7) | 52-TQFP (10x10) | 64-TQFP-EP (10x10) |
