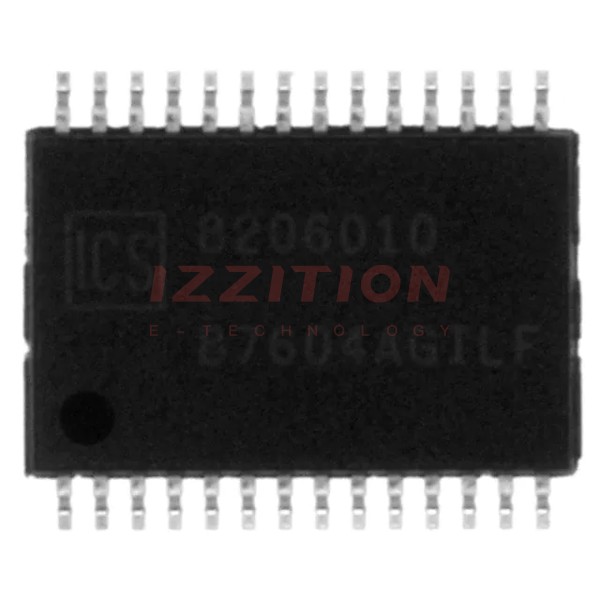

| Part Number | 841604AGILF | 841604AGILFT | 841654AGILF | 841664AGILF | 841602AGILF |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Clock Generator, Fanout Distribution, Multiplexer | Clock Generator, Fanout Distribution, Multiplexer | Clock Generator, Fanout Distribution, Multiplexer | Clock Generator, Fanout Distribution, Multiplexer | Clock Generator, Multiplexer |
| PLL | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass |
| Input | LVCMOS, LVTTL, Crystal | LVCMOS, LVTTL, Crystal | LVCMOS, LVTTL, Crystal | LVCMOS, LVTTL, Crystal | LVCMOS, LVTTL, Crystal |
| Output | HCSL | HCSL | HCSL, LVCMOS, LVTTL | HCSL, LVCMOS, LVTTL | HCSL |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 2:4 | 2:4 | 2:5 | 2:5 | 2:2 |
| Differential - Input:Output | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes |
| Frequency - Max | 125MHz | 125MHz | 125MHz | 156.25MHz | 125MHz |
| Divider/Multiplier | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No |
| Voltage - Supply | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-TSSOP (0.240", 6.10mm Width) | 28-TSSOP (0.240", 6.10mm Width) | 28-TSSOP (0.240", 6.10mm Width) | 28-TSSOP (0.240", 6.10mm Width) | 28-TSSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 28-TSSOP | 28-TSSOP | 28-TSSOP | 28-TSSOP | 28-TSSOP |
