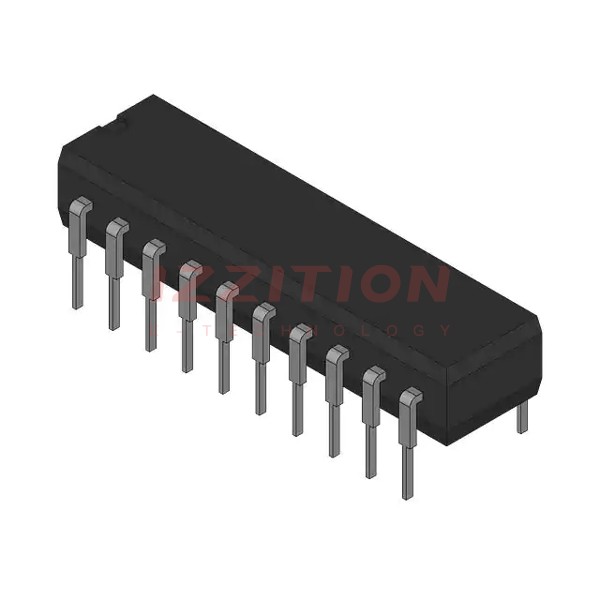

| Part Number | 74HC564P-E | 74HC534P-E | 74HC564FP-E |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete |
| Function | Standard | Standard | Standard |
| Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State, Inverted | Tri-State, Inverted | Tri-State, Inverted |
| Number of Elements | 1 | 1 | 1 |
| Number of Bits per Element | 8 | 8 | 8 |
| Clock Frequency | 137 MHz | 60 MHz | 137 MHz |
| Max Propagation Delay @ V, Max CL | 28ns @ 6V, 50pF | 28ns @ 6V, 50pF | 28ns @ 6V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 7.8mA, 7.8mA | 7.8mA, 7.8mA | 7.8mA, 7.8mA |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Iq) | 8 µA | 8 µA | 8 µA |
| Input Capacitance | 3.5 pF | 10 pF | 3.5 pF |
| Operating Temperature | -40°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | - | - | - |
| Supplier Device Package | - | - | - |
| Package / Case | - | - | - |
