| Part Number | 74ALVCH32374BFG8 | 74ALVCH32374BF8 | 74ALVCH32374BFG |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete |
| Function | Standard | Standard | Standard |
| Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Number of Elements | 4 | 4 | 4 |
| Number of Bits per Element | 8 | 8 | 8 |
| Clock Frequency | 150 MHz | 150 MHz | 150 MHz |
| Max Propagation Delay @ V, Max CL | 4.2ns @ 3.3V, 50pF | 4.2ns @ 3.3V, 50pF | 4.2ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Voltage - Supply | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Current - Quiescent (Iq) | 40 µA | 40 µA | 40 µA |
| Input Capacitance | 5 pF | 5 pF | 5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

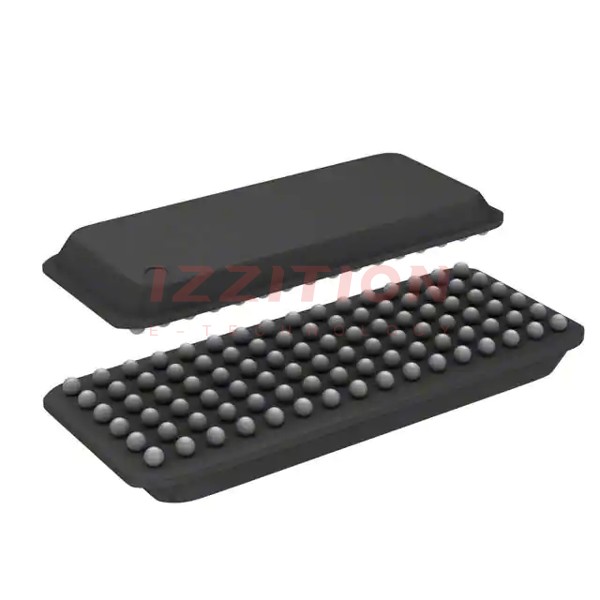

| Supplier Device Package | 96-CABGA (13.5x5.5) | 96-CABGA (13.5x5.5) | 96-CABGA (13.5x5.5) |
| Package / Case | 96-LFBGA | 96-LFBGA | 96-LFBGA |
