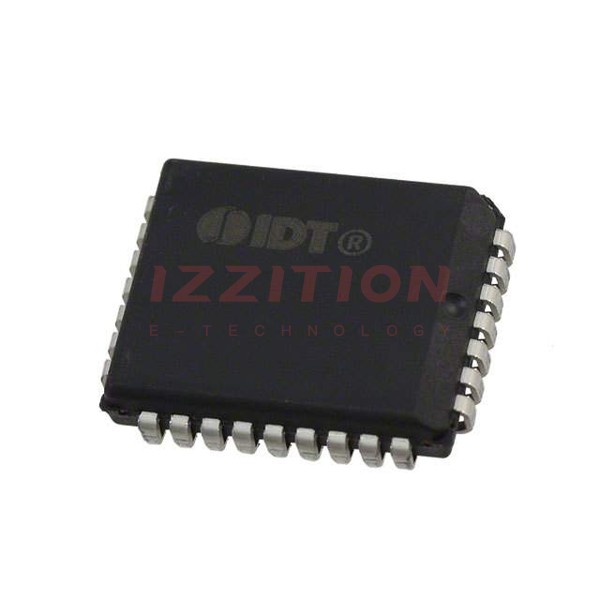

| Part Number | 72V05L15J8 | 72V05L15JG | 72V05L15JG8 | 72V05L25J8 | 72V05L35J8 | 72V06L15J8 | 72V01L15J8 | 72V02L15J8 | 72V03L15J8 | 72V04L15J8 | 72V05L15J |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Memory Size | 72K (8K x 9) | 72K (8K x 9) | 72K (8K x 9) | 72K (8K x 9) | 72K (8K x 9) | 144K (16K x 9) | 4.5K (512 x 9) | 9K (1K x 9) | 18K (2K x 9) | 36K (4K x 9) | 72K (8K x 9) |
| Function | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous |
| Data Rate | 40MHz | 40MHz | 40MHz | 28.5MHz | 22.2MHz | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz |
| Access Time | 15ns | 15ns | 15ns | 25ns | 35ns | 15ns | 15ns | 15ns | 15ns | 15ns | 15ns |
| Voltage - Supply | 3 V ~ 3.6 V | 3 V ~ 3.6 V | 3 V ~ 3.6 V | 3 V ~ 3.6 V | 3 V ~ 3.6 V | 3 V ~ 3.6 V | 3 V ~ 3.6 V | 3 V ~ 3.6 V | 3 V ~ 3.6 V | 3 V ~ 3.6 V | 3 V ~ 3.6 V |
| Current - Supply (Max) | 75mA | 75mA | 75mA | 75mA | 75mA | 75mA | 60mA | 60mA | 60mA | 60mA | 75mA |
| Bus Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional |
| Expansion Type | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width |
| Programmable Flags Support | No | No | No | No | No | No | No | No | No | No | No |
| Retransmit Capability | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| FWFT Support | No | No | No | No | No | No | No | No | No | No | No |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-LCC (J-Lead) | 32-LCC (J-Lead) | 32-LCC (J-Lead) | 32-LCC (J-Lead) | 32-LCC (J-Lead) | 32-LCC (J-Lead) | 32-LCC (J-Lead) | 32-LCC (J-Lead) | 32-LCC (J-Lead) | 32-LCC (J-Lead) | 32-LCC (J-Lead) |
| Supplier Device Package | 32-PLCC (14x11.46) | 32-PLCC (14x11.46) | 32-PLCC (14x11.46) | 32-PLCC (14x11.46) | 32-PLCC (14x11.46) | 32-PLCC (14x11.46) | 32-PLCC (14x11.46) | 32-PLCC (14x11.46) | 32-PLCC (14x11.46) | 32-PLCC (14x11.46) | 32-PLCC (14x11.46) |
