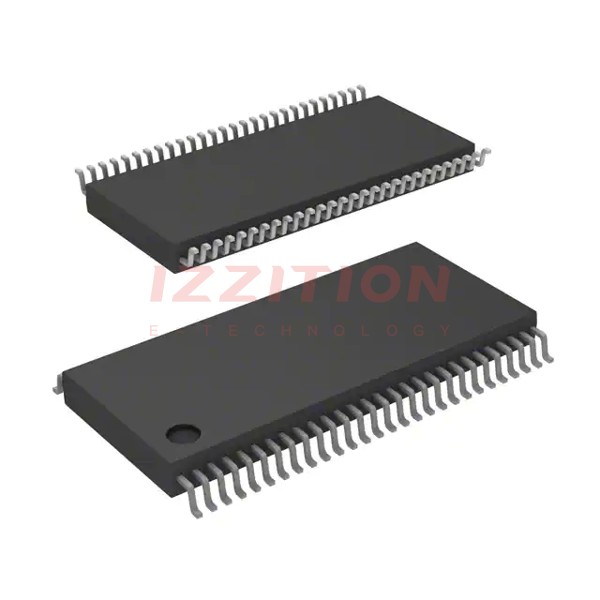

| Part Number | 7282L15PA | 7282L15PA8 | 7282L15PAI | 7283L15PA | 7284L15PA | 7285L15PA | 7280L15PA | 7281L15PA | 7282L12PA |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Memory Size | 18K (1K x 9 x 2) | 18K (1K x 9 x 2) | 18K (1K x 9 x 2) | 36K (2K x 9 x 2) | 72K (4K x 9 x 2) | 144K (8K x 9 x 2) | 4.6K (256 x 9 x 2) | 9K (512 x 9 x 2) | 18K (1K x 9 x 2) |
| Function | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous |
| Data Rate | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz | 50MHz |
| Access Time | 15ns | 15ns | 15ns | 15ns | 15ns | 15ns | 15ns | 15ns | 12ns |
| Voltage - Supply | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V |
| Current - Supply (Max) | 125mA | 125mA | 125mA | 150mA | 150mA | 150mA | 125mA | 125mA | 125mA |
| Bus Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional |
| Expansion Type | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width |
| Programmable Flags Support | No | No | No | No | No | No | No | No | No |
| Retransmit Capability | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| FWFT Support | No | No | No | No | No | No | No | No | No |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 56-TSSOP | 56-TSSOP | 56-TSSOP | 56-TSSOP | 56-TSSOP | 56-TSSOP | 56-TSSOP | 56-TSSOP | 56-TSSOP |
