Please send RFQ , we will respond immediately.

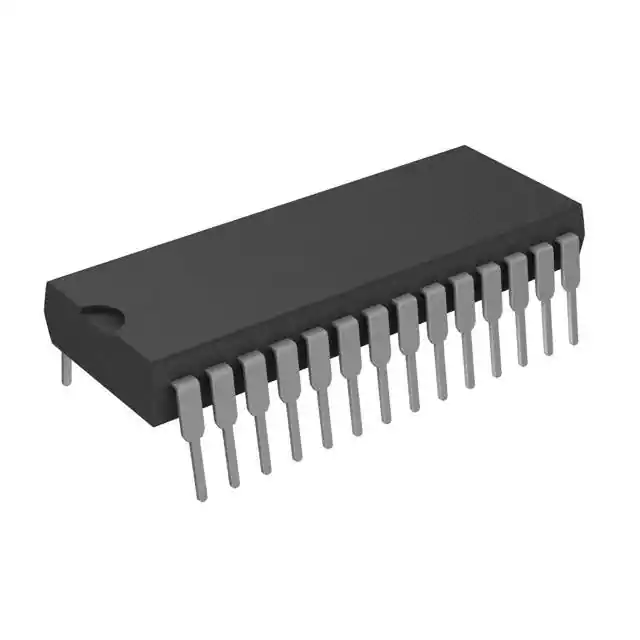

| Part Number | 7204L20P | 7204L20TP | 7204L25P | 7204L50P | 7205L20P | 7206L20P | 7207L20P | 7203L20P | 7204L20J |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Memory Size | 36K (4K x 9) | 36K (4K x 9) | 36K (4K x 9) | 36K (4K x 9) | 72K (8K x 9) | 144K (16K x 9) | 288K (32K x 9) | 18K (2K x 9) | 36K (4K x 9) |
| Function | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous |
| Data Rate | 33.3MHz | 33.3MHz | 28.5MHz | 15MHz | 33.3MHz | 33.3MHz | 33.3MHz | 33.3MHz | 33.3MHz |
| Access Time | 20ns | 20ns | 25ns | 50ns | 20ns | 20ns | 20ns | 20ns | 20ns |
| Voltage - Supply | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V |
| Current - Supply (Max) | 120mA | 120mA | 120mA | 120mA | 120mA | 120mA | 120mA | 120mA | 120mA |
| Bus Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional |
| Expansion Type | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width |
| Programmable Flags Support | No | No | No | No | No | No | No | No | No |
| Retransmit Capability | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| FWFT Support | No | No | No | No | No | No | No | No | No |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | 28-DIP (0.600", 15.24mm) | 28-DIP (0.300", 7.62mm) | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 32-LCC (J-Lead) |
| Supplier Device Package | 28-PDIP | 28-PDIP | 28-PDIP | 28-PDIP | 28-PDIP | 28-PDIP | 28-PDIP | 28-PDIP | 32-PLCC (14x11.46) |
