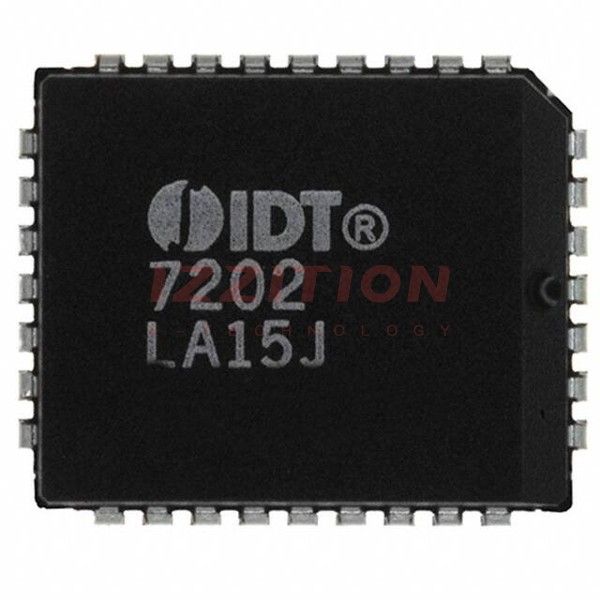

| Part Number | 7202LA15J | 7202LA15J8 | 7202LA15JI | 7202LA15P | 7202LA25J | 7202LA35J | 7201LA15J | 7202LA12J |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Memory Size | 9K (1K x 9) | 9K (1K x 9) | 9K (1K x 9) | 9K (1K x 9) | 9K (1K x 9) | 9K (1K x 9) | 4.5K (512 x 9) | 9K (1K x 9) |
| Function | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous |
| Data Rate | 40MHz | 40MHz | 40MHz | 40MHz | 28.5MHz | 22.2MHz | 40MHz | 50MHz |
| Access Time | 15ns | 15ns | 15ns | 15ns | 25ns | 35ns | 15ns | 12ns |
| Voltage - Supply | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V |
| Current - Supply (Max) | 80mA | 80mA | 80mA | 80mA | 80mA | 80mA | 80mA | 80mA |
| Bus Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional |
| Expansion Type | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width |
| Programmable Flags Support | No | No | No | No | No | No | No | No |
| Retransmit Capability | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| FWFT Support | No | No | No | No | No | No | No | No |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-LCC (J-Lead) | 32-LCC (J-Lead) | 32-LCC (J-Lead) | 28-DIP (0.600", 15.24mm) | 32-LCC (J-Lead) | 32-LCC (J-Lead) | 32-LCC (J-Lead) | 32-LCC (J-Lead) |
| Supplier Device Package | 32-PLCC (14x11.46) | 32-PLCC (14x11.46) | 32-PLCC (14x11.46) | 28-PDIP | 32-PLCC (14x11.46) | 32-PLCC (14x11.46) | 32-PLCC (14x11.46) | 32-PLCC (14x11.46) |
