Please send RFQ , we will respond immediately.

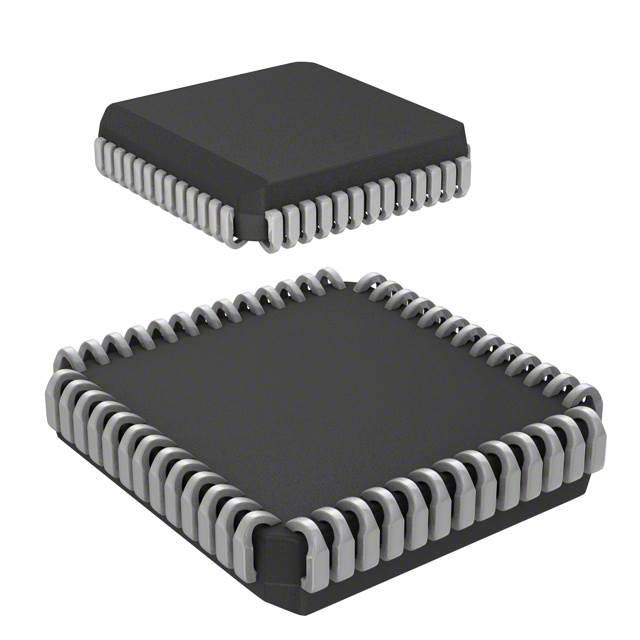

| Part Number | 7142SA55J | 7142SA55J8 | 7142SA55P | 7140SA55J | 71421SA55J | 7142LA55J | 7142SA25J | 7142SA35J | 7142SA55C |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Memory Type | Volatile | Volatile | Volatile | Volatile | Volatile | Volatile | Volatile | Volatile | Volatile |
| Memory Format | SRAM | SRAM | SRAM | SRAM | SRAM | SRAM | SRAM | SRAM | SRAM |
| Technology | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous |
| Memory Size | 16Kb (2K x 8) | 16Kb (2K x 8) | 16Kb (2K x 8) | 8Kb (1K x 8) | 16Kb (2K x 8) | 16Kb (2K x 8) | 16Kb (2K x 8) | 16Kb (2K x 8) | 16Kb (2K x 8) |
| Memory Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Clock Frequency | - | - | - | - | - | - | - | - | - |
| Write Cycle Time - Word, Page | 55ns | 55ns | 55ns | 55ns | 55ns | 55ns | 25ns | 35ns | 55ns |
| Access Time | 55 ns | 55 ns | 55 ns | 55 ns | 55 ns | 55 ns | 25 ns | 35 ns | 55 ns |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
| Package / Case | 52-LCC (J-Lead) | 52-LCC (J-Lead) | 48-DIP (0.600", 15.24mm) | 52-LCC (J-Lead) | 52-LCC (J-Lead) | 52-LCC (J-Lead) | 52-LCC (J-Lead) | 52-LCC (J-Lead) | 48-DIP (0.600", 15.24mm) |
| Supplier Device Package | 52-PLCC (19.13x19.13) | 52-PLCC (19.13x19.13) | 48-PDIP | 52-PLCC (19.13x19.13) | 52-PLCC (19.13x19.13) | 52-PLCC (19.13x19.13) | 52-PLCC (19.13x19.13) | 52-PLCC (19.13x19.13) | 48-SIDE BRAZED |
