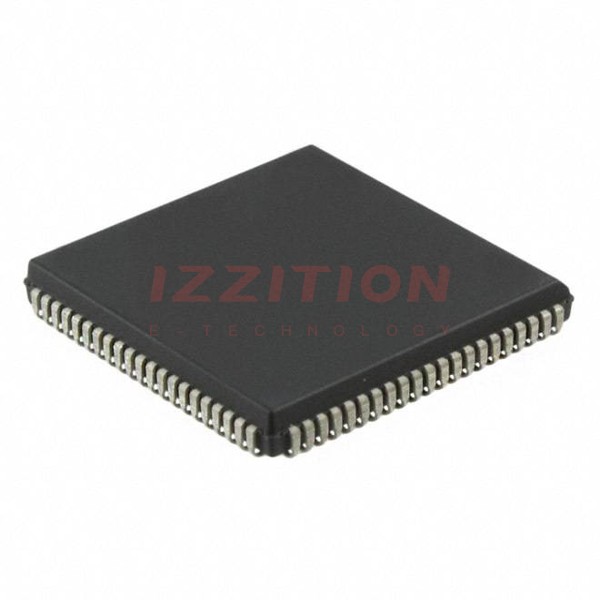

| Part Number | 7024S15J | 7024S15J8 | 7024S17J | 7024S25J | 7024S35J | 7024S45J | 7024S55J | 7025S15J | 7024L15J |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Memory Type | Volatile | Volatile | Volatile | Volatile | Volatile | Volatile | Volatile | Volatile | Volatile |
| Memory Format | SRAM | SRAM | SRAM | SRAM | SRAM | SRAM | SRAM | SRAM | SRAM |
| Technology | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous | SRAM - Dual Port, Asynchronous |
| Memory Size | 64Kb (4K x 16) | 64Kb (4K x 16) | 64Kb (4K x 16) | 64Kb (4K x 16) | 64Kb (4K x 16) | 64Kb (4K x 16) | 64Kb (4K x 16) | 128Kb (8K x 16) | 64Kb (4K x 16) |
| Memory Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Clock Frequency | - | - | - | - | - | - | - | - | - |
| Write Cycle Time - Word, Page | 15ns | 15ns | 17ns | 25ns | 35ns | 45ns | 55ns | 15ns | 15ns |
| Access Time | 15 ns | 15 ns | 17 ns | 25 ns | 35 ns | 45 ns | 55 ns | 15 ns | 15 ns |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 84-LCC (J-Lead) | 84-LCC (J-Lead) | 84-LCC (J-Lead) | 84-LCC (J-Lead) | 84-LCC (J-Lead) | 84-LCC (J-Lead) | 84-LCC (J-Lead) | 84-LCC (J-Lead) | 84-LCC (J-Lead) |
| Supplier Device Package | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) | 84-PLCC (29.31x29.31) |
