Please send RFQ , we will respond immediately.

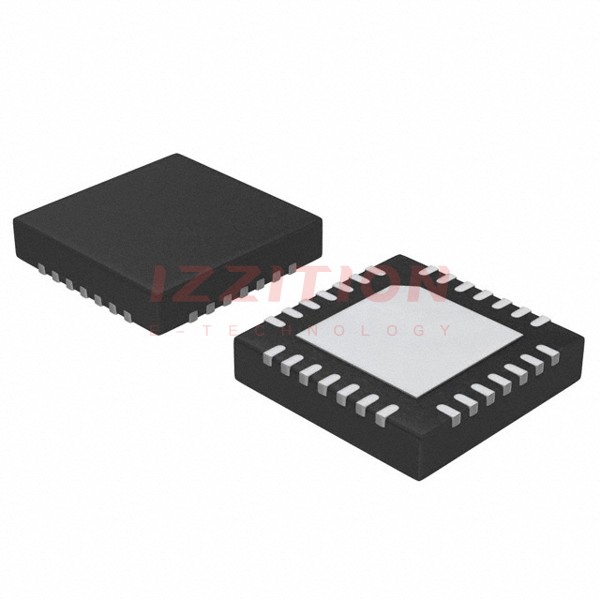

| Part Number | 5V49EE701NDGI8 | 5V49EE704NDGI8 | 5V49EE702NDGI8 | 5V49EE703NDGI8 | 5V49EE701NDGI |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Last Time Buy | Obsolete | Obsolete | Obsolete |
| Type | Clock Generator, Multiplexer | Clock Generator, Multiplexer | Clock Generator, Multiplexer | Clock Generator, Multiplexer | Clock Generator, Multiplexer |
| PLL | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass |
| Input | LVCMOS, LVTTL, Crystal | LVCMOS, LVTTL, Crystal | LVCMOS, LVTTL, Crystal | LVCMOS, LVTTL, Crystal | LVCMOS, LVTTL, Crystal |
| Output | HCSL, LVCMOS, LVDS, LVPECL, LVTTL | LVCMOS, LVTTL | HCSL, LVCMOS, LVDS, LVPECL, LVTTL | LVCMOS, LVTTL | HCSL, LVCMOS, LVDS, LVPECL, LVTTL |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 2:6 | 2:6 | 2:6 | 2:6 | 2:6 |
| Differential - Input:Output | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes |
| Frequency - Max | 500MHz | 200MHz | 500MHz | 200MHz | 500MHz |
| Divider/Multiplier | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes |
| Voltage - Supply | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-VQFN Exposed Pad | 28-VFQFN Exposed Pad | 28-VFQFN Exposed Pad | 28-VFQFN Exposed Pad | 28-VQFN Exposed Pad |
| Supplier Device Package | 28-VFQFPN (6x6) | 28-VFQFPN (4x4) | 28-VFQFPN (4x4) | 28-VFQFPN (4x4) | 28-VFQFPN (6x6) |
