Please send RFQ , we will respond immediately.
| Part Number | 5PB1104CMGK | 5PB1104CMGK8 | 5PB1204CMGK | 5PB1106CMGK | 5PB1102CMGK | 5PB1104CMG1 | 5PB1104CMGI |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Fanout Buffer (Distribution) | Fanout Buffer (Distribution) | Fanout Buffer (Distribution) | Fanout Buffer (Distribution) | Fanout Buffer (Distribution) | Fanout Buffer (Distribution) | Fanout Buffer (Distribution) |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:4 | 1:4 | 1:4 | 1:6 | 1:2 | 1:4 | 1:4 |
| Differential - Input:Output | No/No | No/No | No/No | No/No | No/No | No/No | No/No |
| Input | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS |
| Output | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS |
| Frequency - Max | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz |
| Voltage - Supply | 1.71V ~ 3.465V | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 3.465V | 1.71V ~ 3.465V | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 3.465V |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

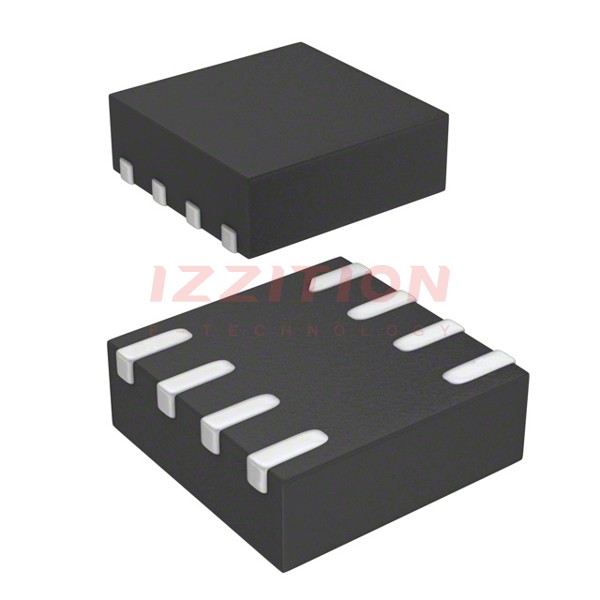

| Package / Case | 8-UFDFN | 8-UFDFN | 16-UFQFN | 16-UFQFN | 8-UFDFN | 8-UFDFN | 8-UFDFN |
| Supplier Device Package | 8-VFQFN (2x2) | 8-VFQFN (2x2) | 16-QFN (2.5x2.5) | 16-QFN (2.5x2.5) | 8-VFQFN (2x2) | 8-VFQFN (2x2) | 8-VFQFN (2x2) |
