Renesas Electronics America Inc-2SK3634-AZ - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	200 V
Current - Continuous Drain (Id) @ 25°C:	6A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	600mOhm @ 3A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	9 nC @ 10 V
Vgs (Max):	-
Input Capacitance (Ciss) (Max) @ Vds:	270 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	-
Operating Temperature:	-
Mounting Type:	Through Hole
Supplier Device Package:	TO-251
Package / Case:	TO-251-3 Short Leads, IPak, TO-251AA

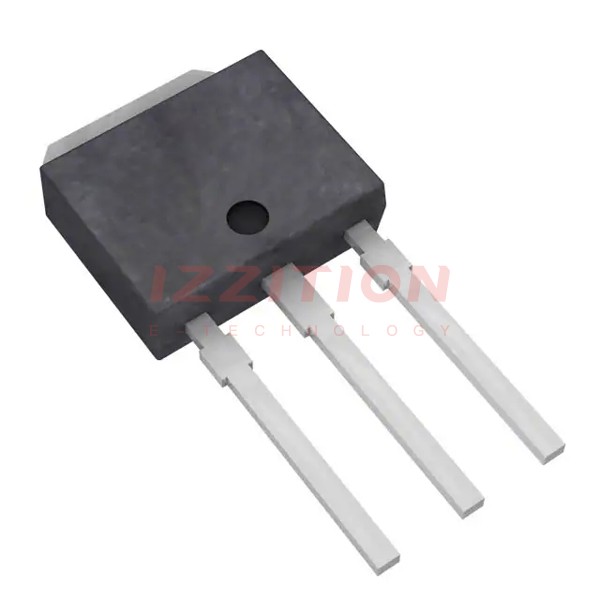

Renesas Electronics America Inc 2SK3634-AZ
