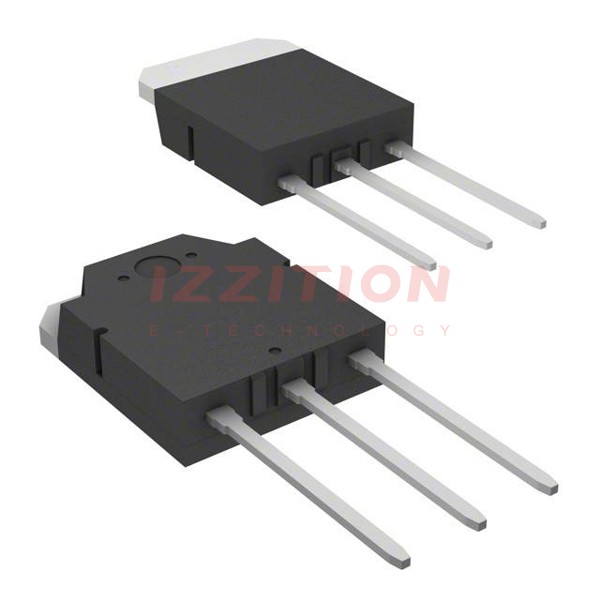

| Part Number | 2SK1342-E | 2SK1340-E | 2SK1341-E |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 900 V | 900 V | 900 V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Ta) | 5A (Ta) | 6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 1.6Ohm @ 4A, 10V | 4Ohm @ 3A, 10V | 3Ohm @ 3A, 10V |
| Vgs(th) (Max) @ Id | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | - | - | - |
| Vgs (Max) | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1730 pF @ 10 V | 740 pF @ 10 V | 980 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 100W (Tc) | 100W (Tc) | 100W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-3P | TO-3P | TO-3P |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
