Please send RFQ , we will respond immediately.

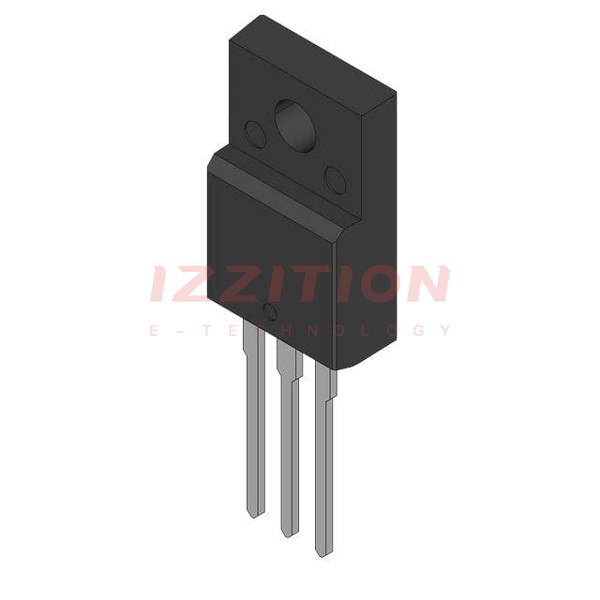

| Part Number | 2SJ546-E | 2SJ542-E | 2SJ545-E |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active |
| FET Type | - | N-Channel | - |
| Technology | - | MOSFET (Metal Oxide) | - |
| Drain to Source Voltage (Vdss) | - | 60 V | - |
| Current - Continuous Drain (Id) @ 25°C | - | 18A (Ta) | - |
| Drive Voltage (Max Rds On, Min Rds On) | - | - | - |
| Rds On (Max) @ Id, Vgs | - | 65mOhm @ 9A, 10V | - |
| Vgs(th) (Max) @ Id | - | 2V @ 1mA | - |
| Gate Charge (Qg) (Max) @ Vgs | - | - | - |
| Vgs (Max) | - | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | - | 1300 pF @ 10 V | - |
| FET Feature | - | - | - |
| Power Dissipation (Max) | - | 60W (Tc) | - |
| Operating Temperature | - | 150°C | - |
| Mounting Type | - | Through Hole | - |
| Supplier Device Package | - | TO-220AB | - |
| Package / Case | - | TO-220-3 | - |
