| Part Number | 2SC5752-T1-A | 2SC5750-T1-A |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete |
| Transistor Type | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 6V | 6V |
| Frequency - Transition | 12GHz | 15GHz |
| Noise Figure (dB Typ @ f) | 1.7dB @ 2GHz | 1.7dB @ 2GHz |
| Gain | 13dB | 15dB |
| Power - Max | 200mW | 200mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 75 @ 30mA, 3V | 75 @ 20mA, 3V |
| Current - Collector (Ic) (Max) | 100mA | 50mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

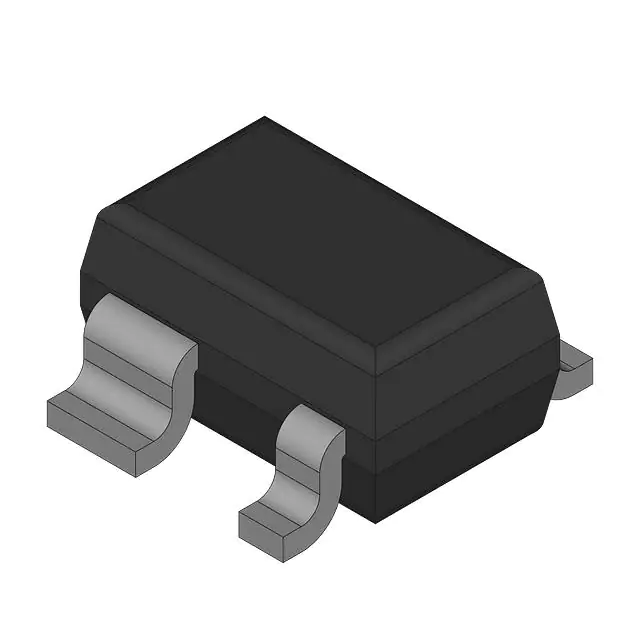

| Package / Case | SC-82A, SOT-343 | SC-82A, SOT-343 |
| Supplier Device Package | SOT-343 | SOT-343 |
