2SC4536-AZ
  • Share:

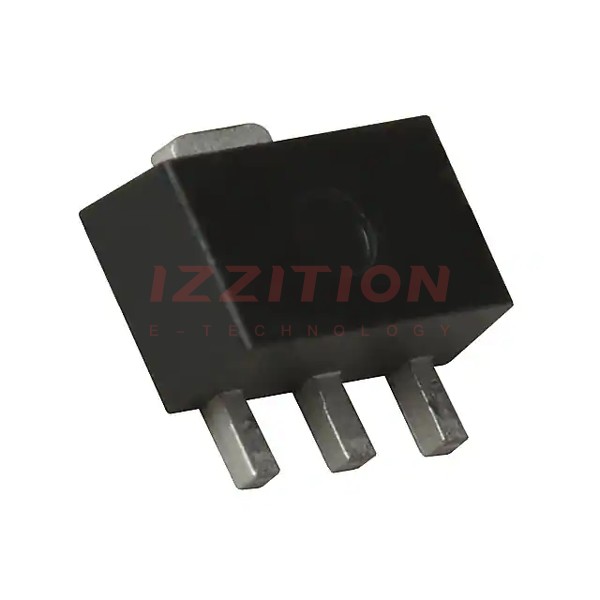

Renesas Electronics America Inc 2SC4536-AZ

Manufacturer No:
2SC4536-AZ
Manufacturer:
Renesas Electronics America Inc
Package:
Strip
Datasheet:
2SC4536-AZ Datasheet
ECAD Model:
-
Description:
RF TRANSISTOR FOR HIGH FREQUENCY
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Transistor Type:NPN
Voltage - Collector Emitter Breakdown (Max):15V
Frequency - Transition:-
Noise Figure (dB Typ @ f):2dB @ 1GHz
Gain:7.2dB
Power - Max:2W
DC Current Gain (hFE) (Min) @ Ic, Vce:60 @ 50mA, 10V
Current - Collector (Ic) (Max):250mA
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89
0 Remaining View Similar

In Stock

-
594

Please send RFQ , we will respond immediately.
