Fairchild Semiconductor-USB10H - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 P-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	1.9A
Rds On (Max) @ Id, Vgs:	170mOhm @ 1.9A, 4.5V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	4.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	441pF @ 10V
Power - Max:	700mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package:	SuperSOT™-6

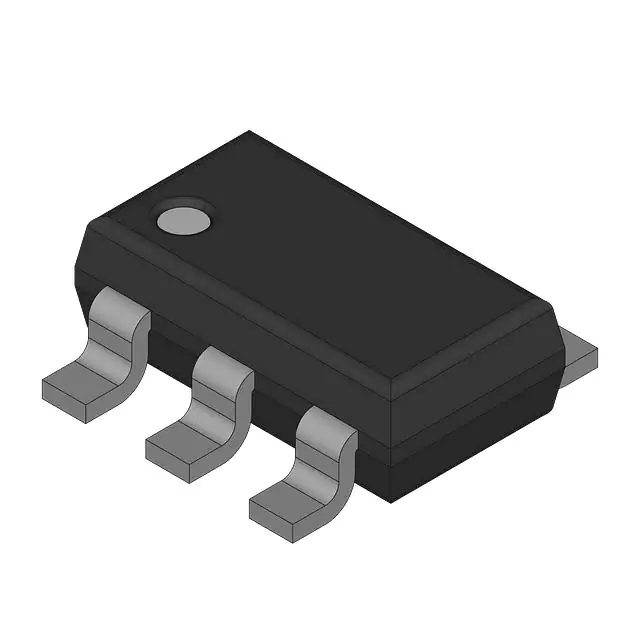

Fairchild Semiconductor USB10H
