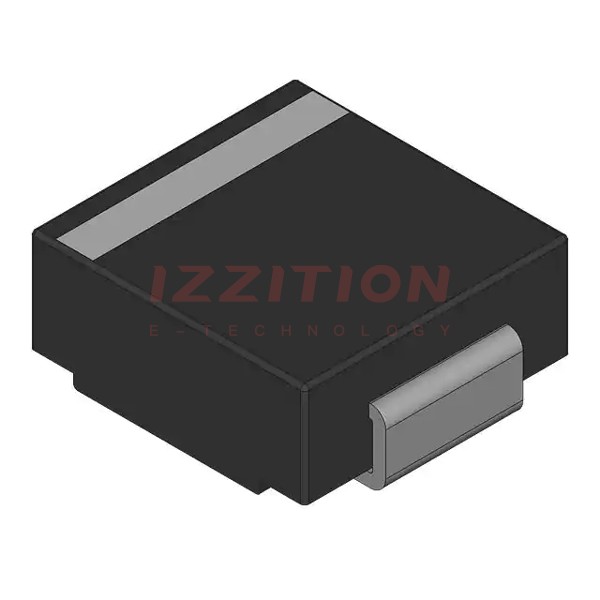

| Part Number | SMCJ7V5A | SMCJ7V5CA | SMCJ7V0A |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 |
| Bidirectional Channels | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 7.5V | 7.5V | 7V |
| Voltage - Breakdown (Min) | 8.33V | 8.33V | 7.78V |
| Voltage - Clamping (Max) @ Ipp | 12.9V | 12.9V | 12V |
| Current - Peak Pulse (10/1000µs) | 116.3A | 116.3A | 125A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | SMC (DO-214AB) | SMC (DO-214AB) | SMC (DO-214AB) |
