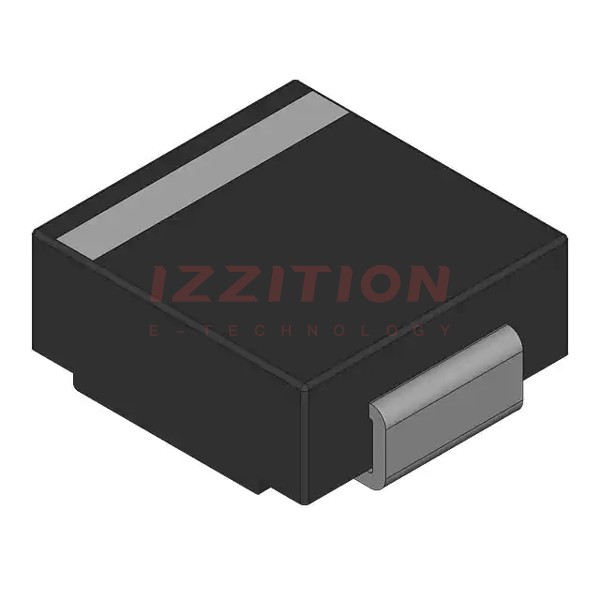

| Part Number | SMCJ6V5CA | SMCJ6V0CA | SMCJ6V5A |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | - | - | 1 |
| Bidirectional Channels | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 6.5V | 6V | 6.5V |
| Voltage - Breakdown (Min) | 7.22V | 6.67V | 7.22V |
| Voltage - Clamping (Max) @ Ipp | 11.2V | 10.3V | 11.2V |
| Current - Peak Pulse (10/1000µs) | 133.9A | 145.6A | 133.9A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | SMC (DO-214AB) | SMC (DO-214AB) | SMC (DO-214AB) |
