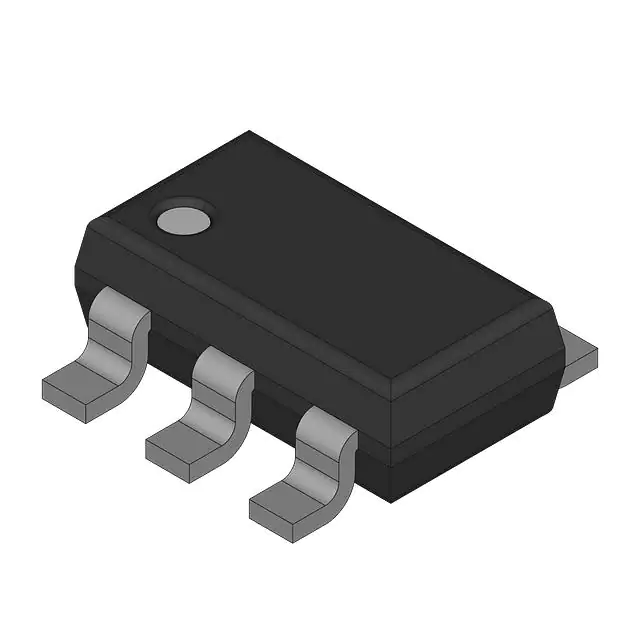

| Part Number | SI3454DV | SI3455DV | SI3456DV | SI3457DV |
|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | P-Channel | N-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 4.2A (Ta) | 3.6A (Ta) | 5.1A (Ta) | 4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 4.2A, 10V | 75mOhm @ 3.6A, 10V | 45mOhm @ 5.1A, 10V | 50mOhm @ 4A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 3V @ 250µA | 2V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 10 V | 5 nC @ 5 V | 12.6 nC @ 10 V | 8.1 nC @ 5 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 460 pF @ 15 V | 298 pF @ 15 V | 463 pF @ 15 V | 470 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 800mW (Ta) | 800mW (Ta) | 800mW (Ta) | 1.6W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SuperSOT™-6 | SuperSOT™-6 | SuperSOT™-6 | SuperSOT™-6 |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 |
