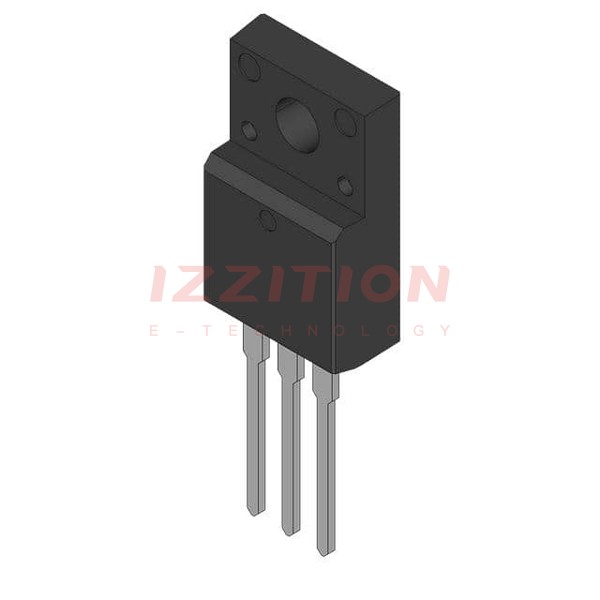

| Part Number | SGS5N60RUFDTU | SGP5N60RUFDTU |
|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 8 A | 8 A |
| Current - Collector Pulsed (Icm) | 15 A | 15 A |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 5A | 2.8V @ 15V, 5A |
| Power - Max | 35 W | 60 W |
| Switching Energy | 88µJ (on), 107µJ (off) | 88µJ (on), 107µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 16 nC | 16 nC |
| Td (on/off) @ 25°C | 13ns/34ns | 13ns/34ns |
| Test Condition | 300V, 5A, 40Ohm, 15V | 300V, 5A, 40Ohm, 15V |
| Reverse Recovery Time (trr) | 55 ns | 55 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-220-3 Full Pack | TO-220-3 |
| Supplier Device Package | TO-220F-3 | TO-220-3 |
