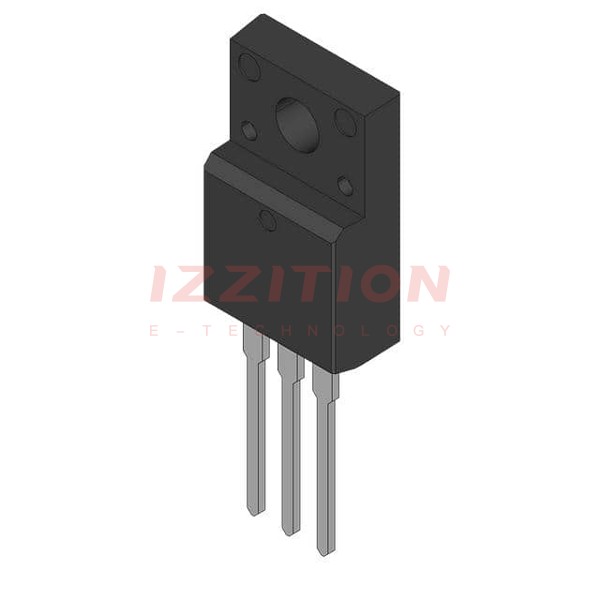

| Part Number | SGS5N150UFTU | SGF5N150UFTU | SGL5N150UFTU |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| IGBT Type | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 1500 V | 1500 V | 1500 V |
| Current - Collector (Ic) (Max) | 10 A | 10 A | 10 A |
| Current - Collector Pulsed (Icm) | 20 A | 20 A | 20 A |
| Vce(on) (Max) @ Vge, Ic | 5.5V @ 10V, 5A | 5.5V @ 10V, 5A | 5.5V @ 10V, 5A |
| Power - Max | 50 W | 62.5 W | 125 W |
| Switching Energy | 190µJ (on), 100µJ (off) | 190µJ (on), 100µJ (off) | 190µJ (on), 100µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 30 nC | 30 nC | 30 nC |
| Td (on/off) @ 25°C | 10ns/30ns | 10ns/30ns | 10ns/30ns |
| Test Condition | 600V, 5A, 10Ohm, 10V | 600V, 5A, 10Ohm, 10V | 600V, 5A, 10Ohm, 10V |
| Reverse Recovery Time (trr) | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 Full Pack | TO-3P-3 Full Pack | TO-264-3, TO-264AA |
| Supplier Device Package | TO-220F-3 | TO-3PF | TO-264-3 |
