| Part Number | SGS10N60RUFTU | SGS10N60RUFDTU |
|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Active |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 16 A | 16 A |
| Current - Collector Pulsed (Icm) | 30 A | 30 A |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 10A | 2.8V @ 15V, 10A |
| Power - Max | 55 W | 55 W |
| Switching Energy | 141µJ (on), 215µJ (off) | 141µJ (on), 215µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 30 nC | 30 nC |
| Td (on/off) @ 25°C | 15ns/36ns | 15ns/36ns |
| Test Condition | 300V, 10A, 20Ohm, 15V | 300V, 10A, 20Ohm, 15V |
| Reverse Recovery Time (trr) | - | 60 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |

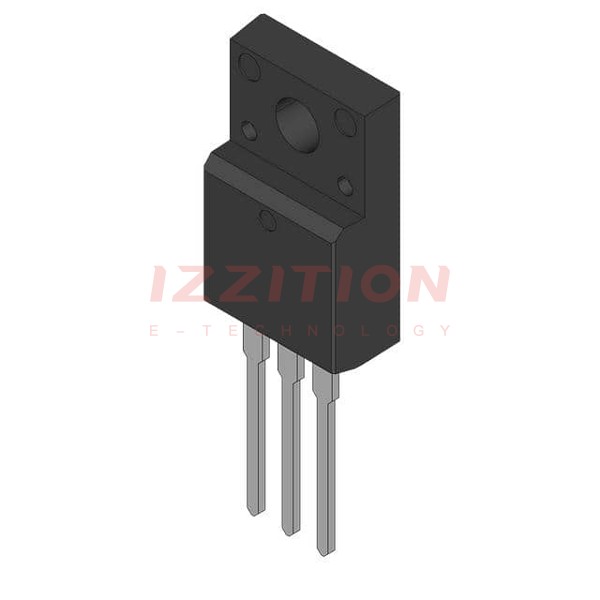

| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack |
| Supplier Device Package | TO-220F-3 | TO-220F-3 |
