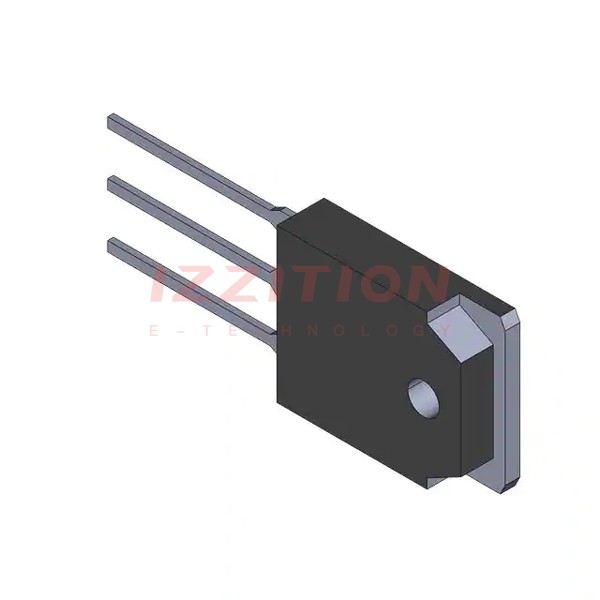

| Part Number | SGH30N60RUFTU | SGH30N60RUFDTU |
|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 48 A | 48 A |
| Current - Collector Pulsed (Icm) | 90 A | 90 A |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 30A | 2.8V @ 15V, 30A |
| Power - Max | 235 W | 235 W |
| Switching Energy | 919µJ (on), 814µJ (off) | 919µJ (on), 814µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 85 nC | 85 nC |
| Td (on/off) @ 25°C | 30ns/54ns | 30ns/54ns |
| Test Condition | 300V, 30A, 7Ohm, 15V | 300V, 30A, 7Ohm, 15V |
| Reverse Recovery Time (trr) | - | 95 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3PN | TO-3P |
