| Part Number | SGH10N60RUFDTU | SGS10N60RUFDTU | SGP10N60RUFDTU | SGH15N60RUFDTU | SGH20N60RUFDTU | SGH30N60RUFDTU |
|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| IGBT Type | - | - | - | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 16 A | 16 A | 16 A | 24 A | 32 A | 48 A |
| Current - Collector Pulsed (Icm) | 30 A | 30 A | 30 A | 45 A | 60 A | 90 A |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 10A | 2.8V @ 15V, 10A | 2.8V @ 15V, 10A | 2.8V @ 15V, 15A | 2.8V @ 15V, 20A | 2.8V @ 15V, 30A |
| Power - Max | 75 W | 55 W | 75 W | 160 W | 195 W | 235 W |
| Switching Energy | 141µJ (on), 215µJ (off) | 141µJ (on), 215µJ (off) | 141µJ (on), 215µJ (off) | 320µJ (on), 356µJ (off) | 524µJ (on), 473µJ (off) | 919µJ (on), 814µJ (off) |
| Input Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Gate Charge | 30 nC | 30 nC | 30 nC | 42 nC | 55 nC | 85 nC |
| Td (on/off) @ 25°C | 15ns/36ns | 15ns/36ns | 15ns/36ns | 17ns/44ns | 30ns/48ns | 30ns/54ns |
| Test Condition | 300V, 10A, 20Ohm, 15V | 300V, 10A, 20Ohm, 15V | 300V, 10A, 20Ohm, 15V | 300V, 15A, 13Ohm, 15V | 300V, 20A, 10Ohm, 15V | 300V, 30A, 7Ohm, 15V |
| Reverse Recovery Time (trr) | 60 ns | 60 ns | 60 ns | 60 ns | 95 ns | 95 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

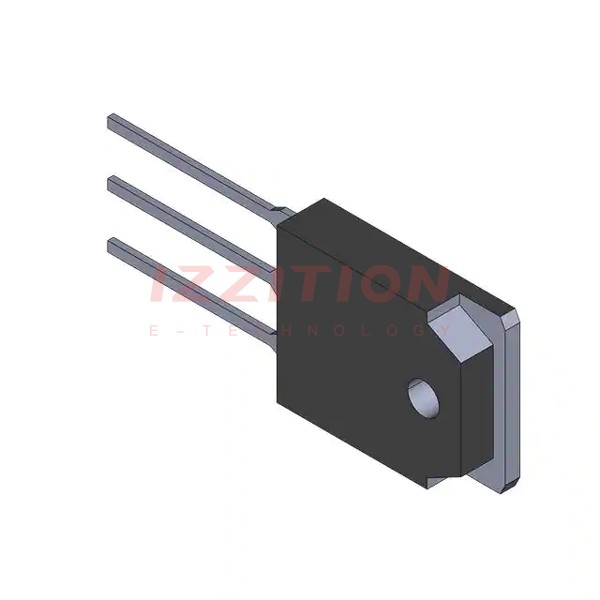

| Package / Case | TO-3P-3, SC-65-3 | TO-220-3 Full Pack | TO-220-3 | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3PN | TO-220F-3 | TO-220-3 | TO-3PN | TO-3P | TO-3P |
