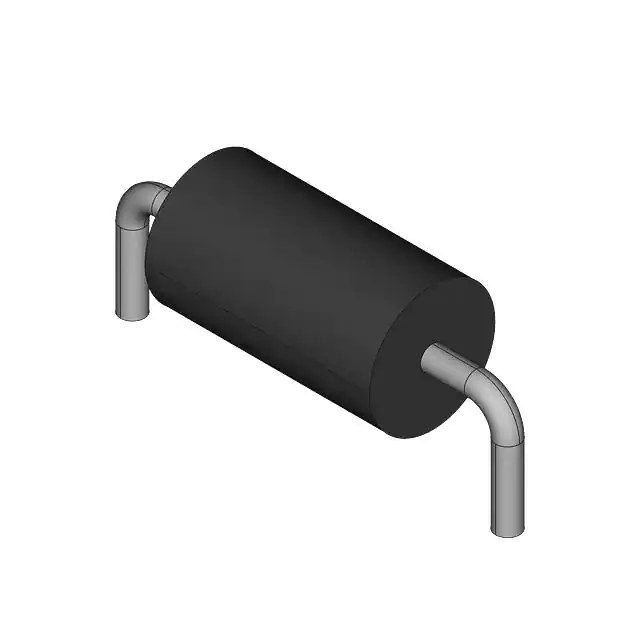

| Part Number | SB360 | SB390 | SB560 | SB380 | SB260 | SB320 | SB340 | SB350 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | EIC SEMICONDUCTOR INC. | Fairchild Semiconductor | onsemi | SMC Diode Solutions | Fairchild Semiconductor | SMC Diode Solutions | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V | 90 V | 60 V | 80 V | 60 V | 20 V | 40 V | 50 V |
| Current - Average Rectified (Io) | 3A | 3A | 5A | 3A | 2A | 3A | 3A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 680 mV @ 3 A | 790 mV @ 3 A | 670 mV @ 5 A | 850 mV @ 3 A | 700 mV @ 2 A | 490 mV @ 3 A | 520 mV @ 3 A | 680 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 60 V | 500 µA @ 500 V | 500 µA @ 60 V | 500 µA @ 80 V | 500 µA @ 60 V | 500 µA @ 20 V | 1 mA @ 40 V | 500 µA @ 50 V |
| Capacitance @ Vr, F | - | - | - | 180pF @ 4V, 1MHz | 140pF @ 4V, 1MHz | - | 200pF @ 5V, 1MHz | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial | DO-201AD, Axial | DO-201AA, DO-27, Axial | DO-201AD, Axial | DO-204AC, DO-15, Axial | DO-201AA, DO-27, Axial | DO-201AD, Axial | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 | DO-201AD | DO-201 | DO-201AD | DO-15 | DO-201 | DO-201AD | DO-201 |
| Operating Temperature - Junction | -50°C ~ 150°C | -65°C ~ 150°C | -50°C ~ 150°C | -65°C ~ 125°C | -65°C ~ 150°C | -50°C ~ 150°C | -55°C ~ 125°C | -50°C ~ 150°C |
