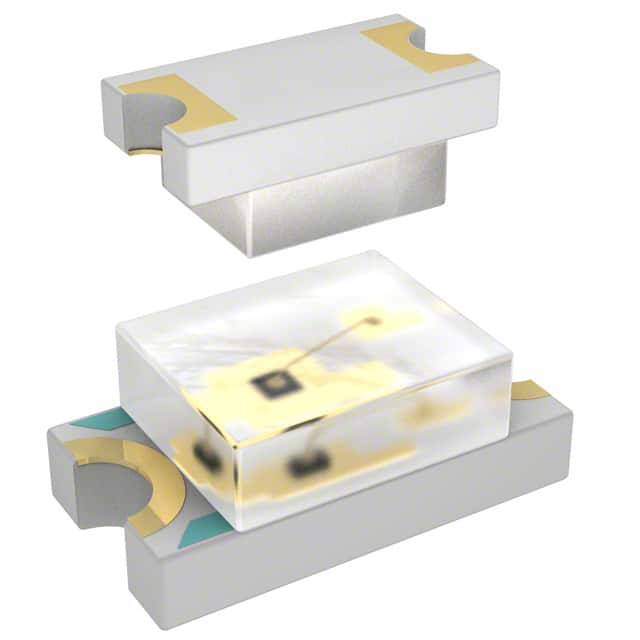

| Part Number | QTLP650C4TR | QTLP650D4TR | QTLP651C4TR | QTLP650CRTR | QTLP652C4TR | QTLP670C4TR | QTLP600C4TR | QTLP610C4TR | QTLP630C4TR | QTLP650C2TR | QTLP650C3TR |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Color | Green | Green | Green | Red | Green | Green | Green | Green | Green | Red | Yellow |
| Configuration | Standard | Standard | Independent | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Green | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Diffused | Clear | Clear | Clear | Clear | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 10mcd | 8mcd | 35mcd | 70mcd | 13mcd | 25mcd | 18mcd | 10mcd | 10mcd | 10mcd | 10mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Round with Flat Top | Rectangle with Flat Top | Round with Flat Top | Round with Flat Top | Rectangle with Flat Top | Rectangle with Domed Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.60mm | 2.00mm x 1.60mm | 1.10mm Dia | 2.00mm x 1.60mm | 1.60mm Dia | 2.40mm Dia | 1.20mm x 0.80mm | 2.00mm x 1.00mm | 1.40mm x 1.25mm | 2.00mm x 1.60mm | 2.00mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2.1V | 2V | 2.1V | 2.1V | 2.1V | 2.1V | 2.1V | 2V | 2V |
| Current - Test | 20mA | 20mA | 10mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 140° | 140° | 20° | 140° | 130° | 120° | 100° | 120° | 140° | 140° | 140° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount, Bottom Entry | Surface Mount | Surface Mount | Surface Mount, Right Angle | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 570nm | 570nm | 570nm | 624nm | 570nm | 570nm | 570nm | 570nm | 570nm | 630nm | 590nm |
| Wavelength - Peak | 565nm | 565nm | 565nm | 630nm | 565nm | 565nm | 565nm | 565nm | 565nm | 635nm | 585nm |
| Features | - | - | - | - | - | - | - | - | - | - | - |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3016 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 2-PLCC | 0603 (1608 Metric) | 2-SMD, No Lead | 0805 (2012 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 | 1206 | 1206 | 1206 | 1206 | 2-PLCC | - | SMD | 0805 | 1206 | 1206 |
| Size / Dimension | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.00mm L x 1.50mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 2.80mm W | 1.60mm L x 0.80mm W | 3.00mm L x 2.00mm W | 2.00mm L x 1.25mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W |
| Height (Max) | 1.30mm | 1.30mm | 1.50mm | 1.30mm | 1.10mm | 2.10mm | 0.80mm | 1.10mm | 1.20mm | 1.30mm | 1.30mm |
