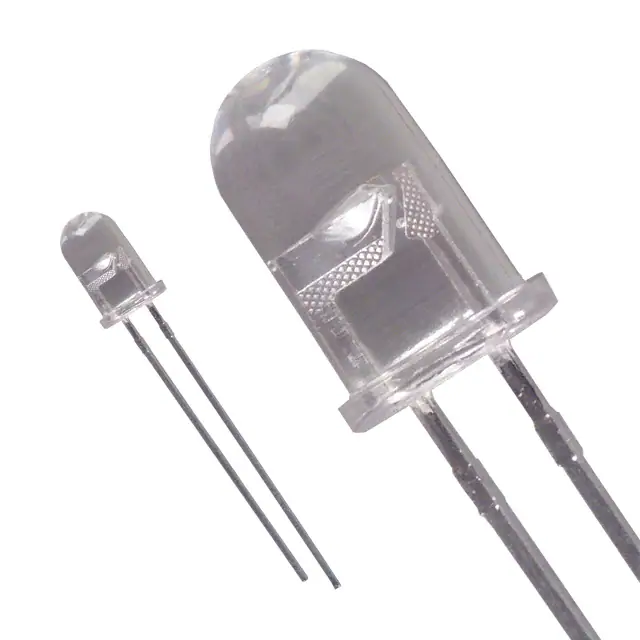

| Part Number | QED233A4R0 | QED223A4R0 | QED233A4A0 |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Active | Obsolete |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 100mA | 100mA | 100mA |
| Radiant Intensity (Ie) Min @ If | 10mW/sr | 25mW/sr @ 100mA | 10mW/sr |
| Wavelength | 940nm | 880nm | 940nm |
| Voltage - Forward (Vf) (Typ) | 1.5V (Max) | 1.7V | 1.5V (Max) |
| Viewing Angle | 40° | 40° | 40° |
| Orientation | Top View | Top View | Top View |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C (TA) | -40°C ~ 100°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial, 5mm Dia (T 1 3/4) | Radial |
