Fairchild Semiconductor-PN5138 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	PN5138	PN5139	PN5133	PN5134	PN5135
Manufacturer	Fairchild Semiconductor	onsemi	onsemi	Fairchild Semiconductor	onsemi
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Transistor Type	PNP	PNP	NPN	NPN	NPN
Current - Collector (Ic) (Max)	500 mA	100 mA	-	500 mA	200 mA
Voltage - Collector Emitter Breakdown (Max)	30 V	20 V	18 V	10 V	25 V
Vce Saturation (Max) @ Ib, Ic	300mV @ 500µA, 10mA	150mV @ 100µA, 1mA	400mV @ 100µA, 1mA	250mV @ 1mA, 10mA	1V @ 10mA, 100mA
Current - Collector Cutoff (Max)	50nA (ICBO)	50nA	-	400nA	300nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 10mA, 10V	40 @ 1mA, 10V	60 @ 1mA, 5V	20 @ 10mA, 1V	50 @ 10mA, 10V
Power - Max	625 mW	625 mW	625 mW	625 mW	625 mW
Frequency - Transition	-	-	-	-	-
Operating Temperature	-55°C ~ 150°C (TJ)	-	-	-55°C ~ 150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA)	TO-226-3, TO-92-3 Short Body	TO-226-3, TO-92-3 Short Body	TO-226-3, TO-92-3 (TO-226AA)	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package	TO-92-3	TO-92S	TO-92S	TO-92-3	TO-92-3

Transistor Type:	PNP
Current - Collector (Ic) (Max):	500 mA
Voltage - Collector Emitter Breakdown (Max):	30 V
Vce Saturation (Max) @ Ib, Ic:	300mV @ 500µA, 10mA
Current - Collector Cutoff (Max):	50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	50 @ 10mA, 10V
Power - Max:	625 mW
Frequency - Transition:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package:	TO-92-3

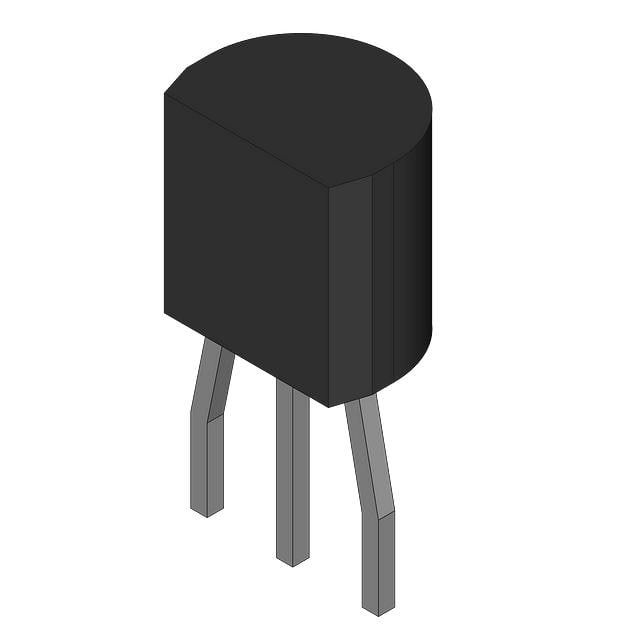

Fairchild Semiconductor PN5138
