Fairchild Semiconductor-PN3645 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	PN3645	PN3646	PN3640	PN3642	PN3643	PN3644
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	onsemi	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Transistor Type	PNP	NPN	PNP	NPN	NPN	PNP
Current - Collector (Ic) (Max)	800 mA	300 mA	200 mA	500 mA	500 mA	800 mA
Voltage - Collector Emitter Breakdown (Max)	60 V	15 V	12 V	45 V	30 V	45 V
Vce Saturation (Max) @ Ib, Ic	400mV @ 15mA, 150mA	500mV @ 3mA, 300mA	600mV @ 5mA, 50mA	220mV @ 15mA, 150mA	220mV @ 15mA, 150mA	400mV @ 15mA, 150mA
Current - Collector Cutoff (Max)	35nA	500nA	10nA	50nA	50nA	35nA
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 10V	30 @ 30mA, 400mV	30 @ 10mA, 300mV	40 @ 150mA, 10V	100 @ 150mA, 10V	100 @ 150mA, 10V
Power - Max	625 mW	350 mW	350 mW	625 mW	625 mW	625 mW
Frequency - Transition	-	-	500MHz	-	-	-
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA)	TO-226-3, TO-92-3 (TO-226AA)	TO-226-3, TO-92-3 (TO-226AA)	TO-226-3, TO-92-3 (TO-226AA)	TO-226-3, TO-92-3 (TO-226AA)	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package	TO-92-3	TO-92-3	TO-92-3	TO-92-3	TO-92-3	TO-92-3

Transistor Type:	PNP
Current - Collector (Ic) (Max):	800 mA
Voltage - Collector Emitter Breakdown (Max):	60 V
Vce Saturation (Max) @ Ib, Ic:	400mV @ 15mA, 150mA
Current - Collector Cutoff (Max):	35nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	100 @ 150mA, 10V
Power - Max:	625 mW
Frequency - Transition:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package:	TO-92-3

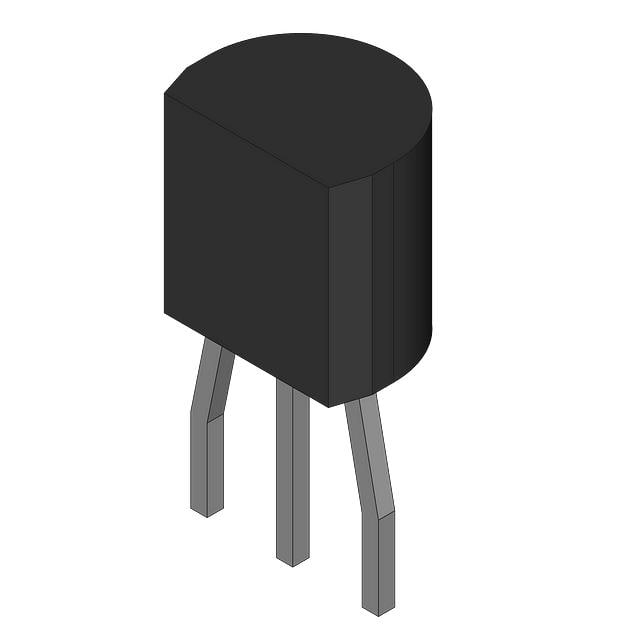

Fairchild Semiconductor PN3645
