Please send RFQ , we will respond immediately.

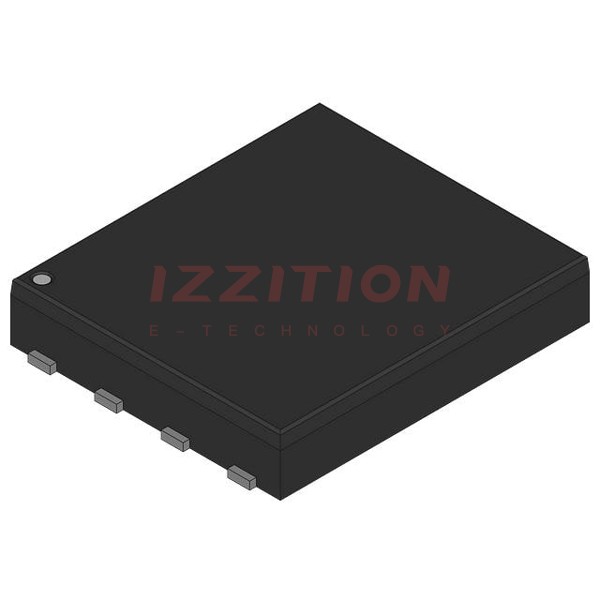

| Part Number | NTMFS4936NCT1G | NTMFS4936NCT3G | NTMFS4937NCT1G | NTMFS4936NT1G | NTMFS4935NCT1G |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete | Obsolete | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 11.6A (Ta), 79A (Tc) | 11.6A (Ta), 79A (Tc) | 10.2A (Ta) | 11.6A (Ta), 79A (Tc) | 13A (Ta), 93A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.8mOhm @ 30A, 10V | 3.8mOhm @ 30A, 10V | 4mOhm @ 30A, 10V | 3.8mOhm @ 30A, 10V | 3.2mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA | 2.2V @ 250µA | 2.2V @ 250µA | 2.2V @ 250µA | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 43 nC @ 10 V | 43 nC @ 10 V | 31 nC @ 10 V | 43 nC @ 10 V | 49.4 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3044 pF @ 15 V | 3044 pF @ 15 V | 2516 pF @ 15 V | 3044 pF @ 15 V | 4850 pF @ 15 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 920mW (Ta), 43W (Tc) | 920mW (Ta), 43W (Tc) | - | 920mW (Ta), 43W (Tc) | 930mW (Ta), 48W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) | 5-DFN (5x6) (8-SOFL) | 5-DFN (5x6) (8-SOFL) | 5-DFN (5x6) (8-SOFL) | 5-DFN (5x6) (8-SOFL) |
| Package / Case | 8-PowerTDFN, 5 Leads | 8-PowerTDFN, 5 Leads | 8-PowerTDFN, 5 Leads | 8-PowerTDFN, 5 Leads | 8-PowerTDFN, 5 Leads |
