Fairchild Semiconductor-NDH832P - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	4.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.7V, 4.5V
Rds On (Max) @ Id, Vgs:	60mOhm @ 4.2A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	30 nC @ 4.5 V
Vgs (Max):	-8V
Input Capacitance (Ciss) (Max) @ Vds:	1000 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	1.8W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SuperSOT™-8
Package / Case:	8-TSOP (0.130", 3.30mm Width)

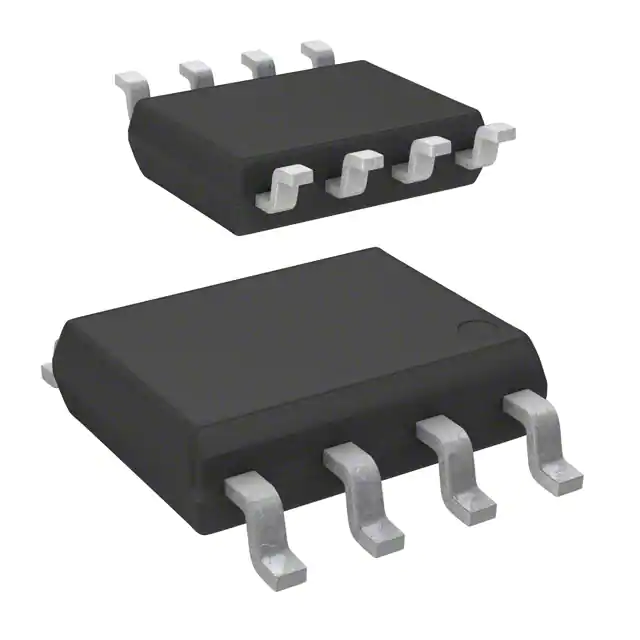

Fairchild Semiconductor NDH832P
