Please send RFQ , we will respond immediately.
| Part Number | NCS210SQT2G | NCS211SQT2G | NCS214SQT2G | NCS213SQT2G | NCS210RSQT2G |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Amplifier Type | Current Sense | Zero-Drift | Zero-Drift | Current Sense | Current Sense |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 0.4V/µs | 0.4V/µs | 0.4V/µs | 0.4V/µs | 1V/µs |
| Gain Bandwidth Product | - | - | - | - | - |
| -3db Bandwidth | 40 kHz | 25 kHz | 60 kHz | 100 kHz | 40 kHz |
| Current - Input Bias | 60 µA | 60 µA | 60 µA | - | 39 µA |
| Voltage - Input Offset | 0.55 µV | 0.55 µV | 0.55 µV | 5 µV | 0.55 µV |
| Current - Supply | 65µA | 65µA | 65µA | 65µA | 40µA |
| Current - Output / Channel | - | - | - | - | - |
| Voltage - Supply Span (Min) | 2.7 V | 2.7 V | 2.7 V | 2.2 V | 2.2 V |
| Voltage - Supply Span (Max) | 26 V | 26 V | 26 V | 26 V | 26 V |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

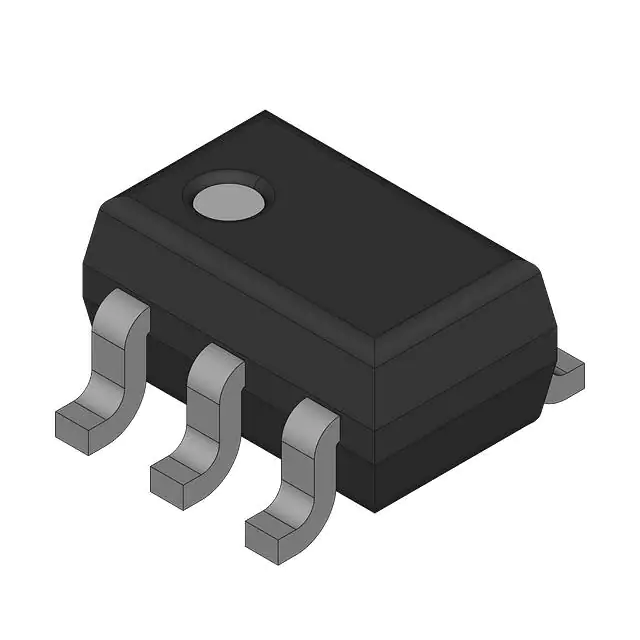

| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 |
