Please send RFQ , we will respond immediately.

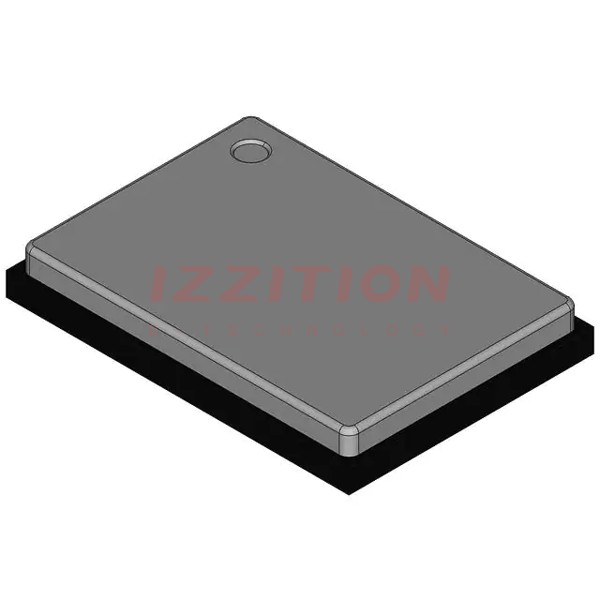

| Part Number | NCP707CMX310TCG | NCP717CMX310TCG | NCP707CMX320TCG | NCP707CMX330TCG | NCP707AMX310TCG | NCP707BMX310TCG | NCP707CMX300TCG |
|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Output Configuration | - | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | - | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | - | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | - | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | - | 3.1V | 3.2V | 3.3V | 3.1V | 3.1V | 3V |
| Voltage - Output (Max) | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | - | 0.235V @ 300mA | 0.155V @ 200mA | 0.150V @ 200mA | 0.16V @ 200mA | 0.16V @ 200mA | 0.165V @ 200mA |
| Current - Output | - | 300mA | 200mA | 200mA | 200mA | 200mA | 200mA |
| Current - Quiescent (Iq) | - | 35 µA | 35 µA | 35 µA | 35 µA | 35 µA | 35 µA |
| Current - Supply (Max) | - | - | - | - | - | - | - |
| PSRR | - | 70dB ~ 55dB (1kHz ~ 10kHz) | - | - | 70dB ~ 55dB (1kHz ~ 10kHz) | 70dB ~ 55dB (1kHz ~ 10kHz) | - |
| Control Features | - | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | - | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad |
| Supplier Device Package | - | 4-XDFN (1x1) | 4-XDFN (1x1) | 4-XDFN (1x1) | 4-XDFN (1x1) | 4-XDFN (1x1) | 4-XDFN (1x1) |
