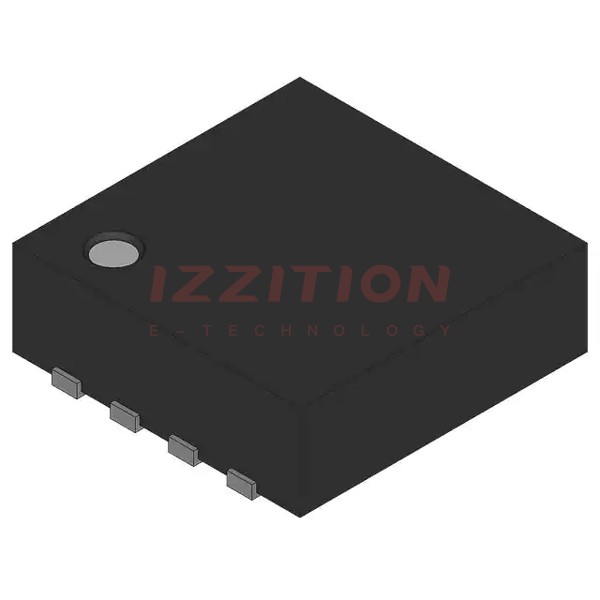

| Part Number | NC7WZ132L8X | NC7WZ32L8X | NC7WZ132K8X |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| Product Status | Active | Active | Obsolete |
| Logic Type | NAND Gate | OR Gate | NAND Gate |
| Number of Circuits | 2 | 2 | 2 |
| Number of Inputs | 2 | 2 | 2 |
| Features | Schmitt Trigger | - | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | 0.2V ~ 1.2V | - | 0.2V ~ 1.2V |
| Logic Level - High | 1.4V ~ 3.6V | - | 1.4V ~ 3.6V |
| Max Propagation Delay @ V, Max CL | 4.5ns @ 5V, 50pF | 3.7ns @ 5V, 50pF | 4.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-MicroPak™ | 8-MicroPak™ | US8 |
| Package / Case | 8-UFQFN | 8-UFQFN | 8-VFSOP (0.091", 2.30mm Width) |
