Fairchild Semiconductor-NC7WP02L8X - Logic - Gates and Inverters Product Specifications and Latest Quotes

Part Number	NC7WP02L8X	NC7WP32L8X	NC7WP08L8X	NC7WZ02L8X	NC7WP00L8X	NC7WP02K8X
Manufacturer	Fairchild Semiconductor	onsemi	Fairchild Semiconductor	onsemi	Fairchild Semiconductor	Fairchild Semiconductor
Product Status	Active	Active	Active	Obsolete	Active	Active
Logic Type	NOR Gate	OR Gate	AND Gate	NOR Gate	NAND Gate	NOR Gate
Number of Circuits	2	2	2	2	2	2
Number of Inputs	2	2	2	2	2	2
Features	-	-	-	-	-	-
Voltage - Supply	0.9V ~ 3.6V	0.9V ~ 3.6V	0.9V ~ 3.6V	1.65V ~ 5.5V	0.9V ~ 3.6V	0.9V ~ 3.6V
Current - Quiescent (Max)	900 nA	900 nA	900 nA	1 µA	900 nA	900 nA
Current - Output High, Low	2.6mA, 2.6mA	2.6mA, 2.6mA	2.6mA, 2.6mA	32mA, 32mA	2.6mA, 2.6mA	2.6mA, 2.6mA
Logic Level - Low	0.7V ~ 0.9V	0.7V ~ 0.9V	0.7V ~ 0.9V	-	0.7V ~ 0.9V	0.7V ~ 0.9V
Logic Level - High	1.6V ~ 2V	1.6V ~ 2.1V	1.6V ~ 2.1V	-	1.6V ~ 2V	1.6V ~ 2.1V
Max Propagation Delay @ V, Max CL	7ns @ 3.3V, 30pF	7ns @ 3.3V, 30pF	9.2ns @ 3.3V, 30pF	3.7ns @ 5V, 50pF	7ns @ 3.3V, 30pF	7ns @ 3.3V, 30pF
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Supplier Device Package	8-MicroPak™	8-MicroPak™	8-MicroPak™	8-MicroPak™	8-MicroPak™	US8
Package / Case	8-UFQFN	8-UFQFN	8-UFQFN	8-UFQFN	8-UFQFN	8-VFSOP (0.091", 2.30mm Width)

Logic Type:	NOR Gate
Number of Circuits:	2
Number of Inputs:	2
Features:	-
Voltage - Supply:	0.9V ~ 3.6V
Current - Quiescent (Max):	900 nA
Current - Output High, Low:	2.6mA, 2.6mA
Logic Level - Low:	0.7V ~ 0.9V
Logic Level - High:	1.6V ~ 2V
Max Propagation Delay @ V, Max CL:	7ns @ 3.3V, 30pF
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Supplier Device Package:	8-MicroPak™
Package / Case:	8-UFQFN

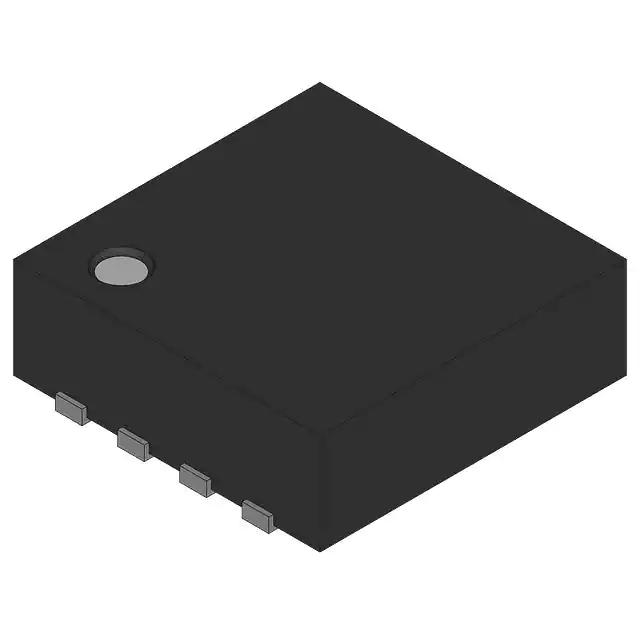

Fairchild Semiconductor NC7WP02L8X
