Fairchild Semiconductor-NC7WP02K8X - Logic - Gates and Inverters Product Specifications and Latest Quotes

Part Number	NC7WP02K8X	NC7WP32K8X	NC7WP02L8X	NC7WZ02K8X	NC7WP08K8X
Manufacturer	Fairchild Semiconductor	onsemi	Fairchild Semiconductor	onsemi	onsemi
Product Status	Active	Active	Active	Obsolete	Active
Logic Type	NOR Gate	OR Gate	NOR Gate	NOR Gate	AND Gate
Number of Circuits	2	2	2	2	2
Number of Inputs	2	2	2	2	2
Features	-	-	-	-	-
Voltage - Supply	0.9V ~ 3.6V	0.9V ~ 3.6V	0.9V ~ 3.6V	1.65V ~ 5.5V	0.9V ~ 3.6V
Current - Quiescent (Max)	900 nA	900 nA	900 nA	1 µA	900 nA
Current - Output High, Low	2.6mA, 2.6mA	2.6mA, 2.6mA	2.6mA, 2.6mA	32mA, 32mA	2.6mA, 2.6mA
Logic Level - Low	0.7V ~ 0.9V	0.7V ~ 0.9V	0.7V ~ 0.9V	-	0.7V ~ 0.9V
Logic Level - High	1.6V ~ 2.1V	1.6V ~ 2.1V	1.6V ~ 2V	-	1.6V ~ 2.1V
Max Propagation Delay @ V, Max CL	7ns @ 3.3V, 30pF	7ns @ 3.3V, 30pF	7ns @ 3.3V, 30pF	3.7ns @ 5V, 50pF	9.2ns @ 3.3V, 30pF
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Supplier Device Package	US8	US8	8-MicroPak™	US8	US8
Package / Case	8-VFSOP (0.091", 2.30mm Width)	8-VFSOP (0.091", 2.30mm Width)	8-UFQFN	8-VFSOP (0.091", 2.30mm Width)	8-VFSOP (0.091", 2.30mm Width)

Logic Type:	NOR Gate
Number of Circuits:	2
Number of Inputs:	2
Features:	-
Voltage - Supply:	0.9V ~ 3.6V
Current - Quiescent (Max):	900 nA
Current - Output High, Low:	2.6mA, 2.6mA
Logic Level - Low:	0.7V ~ 0.9V
Logic Level - High:	1.6V ~ 2.1V
Max Propagation Delay @ V, Max CL:	7ns @ 3.3V, 30pF
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Supplier Device Package:	US8
Package / Case:	8-VFSOP (0.091", 2.30mm Width)

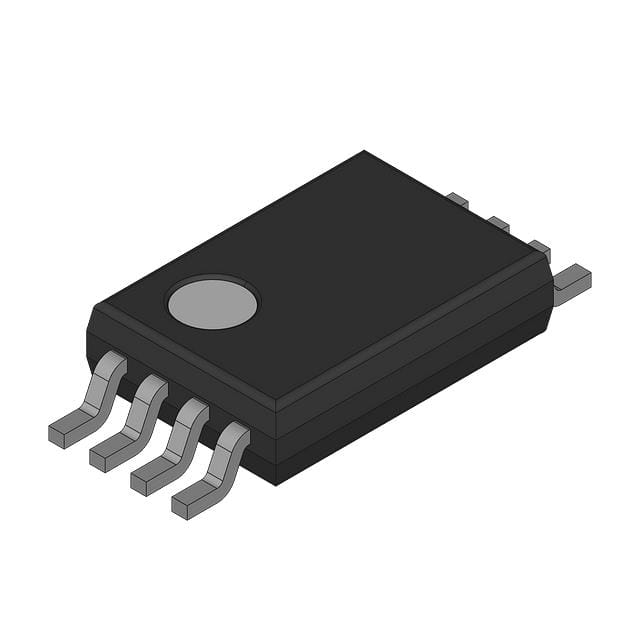

Fairchild Semiconductor NC7WP02K8X
