Please send RFQ , we will respond immediately.

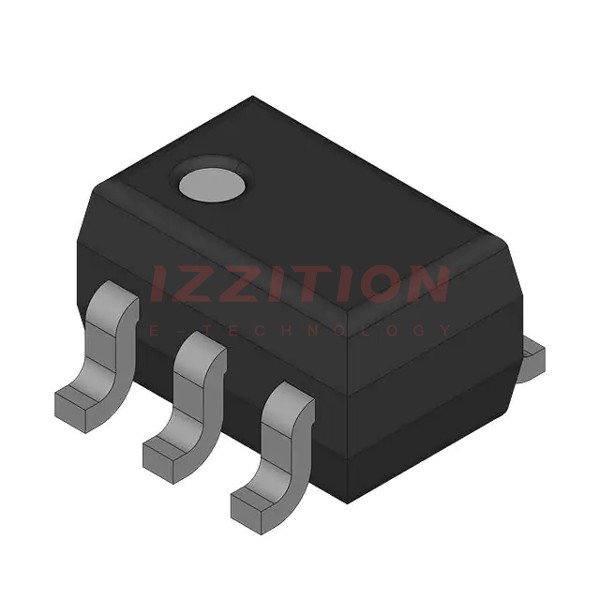

| Part Number | NC7SZU04P5 | NC7SZU04P5X | NC7SZ04P5 | NC7SZU04M5 |
|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Obsolete | Active | Active |
| Logic Type | Inverter | Inverter | Inverter | Inverter |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Number of Inputs | 1 | 1 | 1 | 1 |
| Features | - | - | - | - |
| Voltage - Supply | 1.8V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA | 2 µA |
| Current - Output High, Low | 16mA, 16mA | 16mA, 16mA | 32mA, 32mA | 16mA, 16mA |
| Logic Level - Low | - | - | - | - |
| Logic Level - High | - | - | - | - |
| Max Propagation Delay @ V, Max CL | 50ns @ 5V, 50pF | 5ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SC-70-5 | SC-70-5 | SC-70-5 | SOT-23-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | SC-74A, SOT-753 |
