Please send RFQ , we will respond immediately.

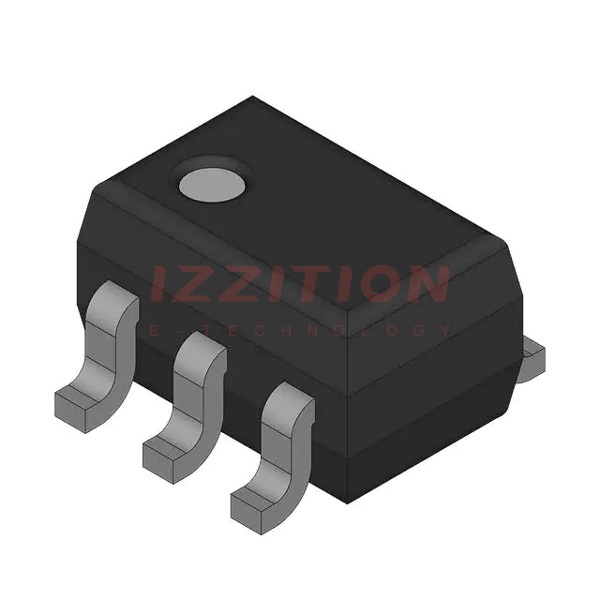

| Part Number | NC7SZ04P5 | NC7SZ05P5 | NC7SZ04P5X | NC7SZ14P5 | NC7SZ08P5 | NC7SZU04P5 | NC7ST04P5 | NC7SU04P5 | NC7SZ00P5 | NC7SZ02P5 | NC7SZ04M5 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Obsolete | Active | Active | Active | Active | Active | Active | Active | Active |
| Logic Type | Inverter | Inverter | Inverter | Inverter | AND Gate | Inverter | Inverter | Inverter | - | NOR Gate | Inverter |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 | 1 |
| Number of Inputs | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | - | 2 | 1 |
| Features | - | - | - | Schmitt Trigger | - | - | - | - | - | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.8V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.8V ~ 5.5V | 4.5V ~ 5.5V | 2V ~ 6V | - | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA | 1 µA | 2 µA | 2 µA | 1 µA | 1 µA | - | 2 µA | 2 µA |
| Current - Output High, Low | 32mA, 32mA | 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 16mA, 16mA | 2mA, 2mA | 2.6mA, 2.6mA | - | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | - | - | - | 0.2V ~ 1.2V | - | - | 0.8V | 0.3V ~ 1.2V | - | - | - |
| Logic Level - High | - | - | - | 1.4V ~ 3.6V | - | - | 2V | 1.7V ~ 4.8V | - | - | - |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 5.9ns @ 5V, 50pF | 4.5ns @ 5V, 50pF | 50ns @ 5V, 50pF | 26ns @ 5.5V, 50pF | 21ns @ 6V, 50pF | - | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount |
| Supplier Device Package | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | - | SC-70-5 | SOT-23-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | - | 5-TSSOP, SC-70-5, SOT-353 | SC-74A, SOT-753 |
