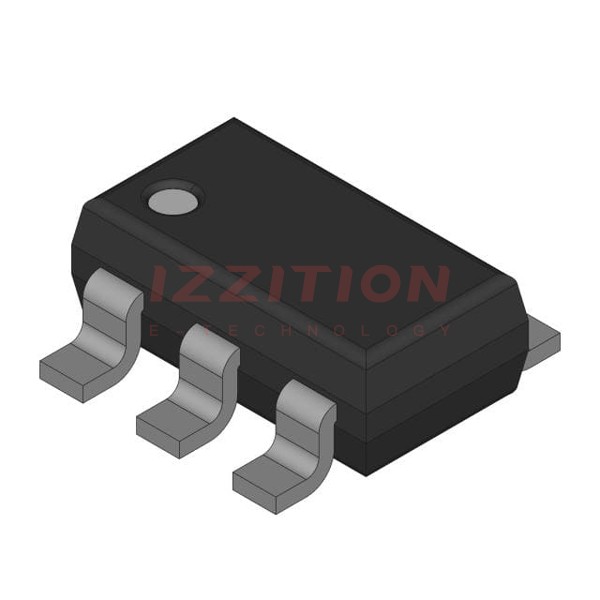

| Part Number | NC7SZ04M5 | NC7SZ05M5 | NC7SZU04M5 | NC7SZ04M5X | NC7SZ08M5 | NC7SZ14M5 | NC7SZ04P5 | NC7ST04M5 | NC7SU04M5 | NC7SZ00M5 | NC7SZ02M5 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active | Active | Active | Active | Active |
| Logic Type | Inverter | Inverter | Inverter | Inverter | AND Gate | Inverter | Inverter | Inverter | - | NAND Gate | NOR Gate |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 | 1 |
| Number of Inputs | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | - | 2 | 2 |
| Features | - | Open Drain | - | - | - | - | - | - | - | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.65V ~ 5.5V | 4.5V ~ 5.5V | - | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA | 1 µA | - | 2 µA | 2 µA |
| Current - Output High, Low | 32mA, 32mA | -, 32mA | 16mA, 16mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 2mA, 2mA | - | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | - | - | - | - | - | 0.9V ~ 2.3V | - | 0.8V | - | - | - |
| Logic Level - High | - | - | - | - | - | 1.5V ~ 3.6V | - | 2V | - | - | - |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 5ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 4.5ns @ 5V, 50pF | 5.9ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 26ns @ 5.5V, 50pF | - | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SC-70-5 | SOT-23-5 | - | SOT-23-5 | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | 5-TSSOP, SC-70-5, SOT-353 | SC-74A, SOT-753 | - | SC-74A, SOT-753 | SC-74A, SOT-753 |
