Please send RFQ , we will respond immediately.

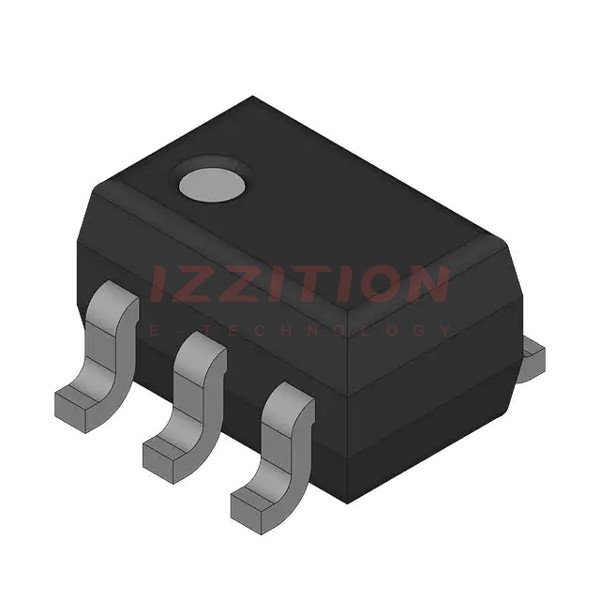

| Part Number | NC7SZ00P5 | NC7SZ05P5 | NC7SZ00P5X | NC7SZ02P5 | NC7SZ08P5 | NC7SZ04P5 | NC7ST00P5 | NC7SZ00M5 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active |
| Logic Type | - | Inverter | NAND Gate | NOR Gate | AND Gate | Inverter | NAND Gate | NAND Gate |
| Number of Circuits | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | - | 1 | 2 | 2 | 2 | 1 | 2 | 2 |
| Features | - | - | - | - | - | - | - | - |
| Voltage - Supply | - | 1.8V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 4.5V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | - | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA | 1 µA | 2 µA |
| Current - Output High, Low | - | 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 2mA, 2mA | 32mA, 32mA |
| Logic Level - Low | - | - | - | - | - | - | 0.8V | - |
| Logic Level - High | - | - | - | - | - | - | 2V | - |
| Max Propagation Delay @ V, Max CL | - | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 4.5ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 26ns @ 5.5V, 50pF | 4.3ns @ 5V, 50pF |
| Operating Temperature | - | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SOT-23-5 |
| Package / Case | - | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | SC-74A, SOT-753 |
