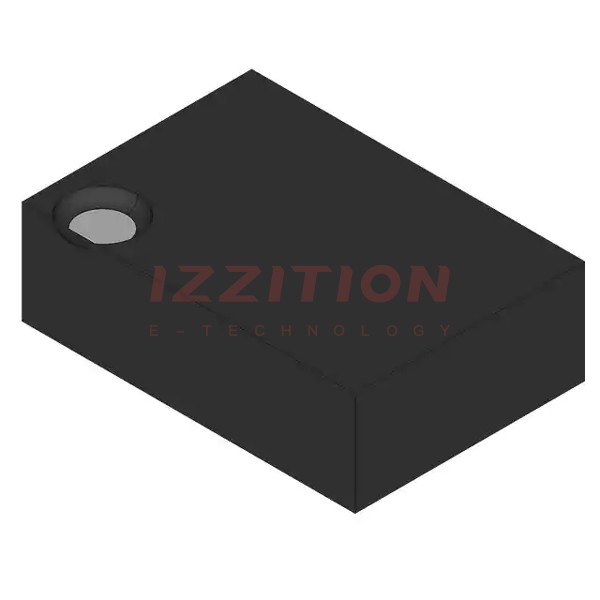

| Part Number | NC7SV00FHX | NC7SV05FHX | NC7SV08FHX | NC7SV04FHX | NC7SZ00FHX | NC7SV02FHX |
|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Active | Active | Active |
| Logic Type | NAND Gate | Inverter | AND Gate | Inverter | NAND Gate | NOR Gate |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 2 | 1 | 2 | 1 | 2 | 2 |
| Features | - | Open Drain | - | - | - | - |
| Voltage - Supply | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 1.65V ~ 5.5V | 0.9V ~ 3.6V |
| Current - Quiescent (Max) | 900 nA | 900 nA | 900 nA | 900 nA | 2 µA | 900 nA |
| Current - Output High, Low | 24mA, 24mA | -, 24mA | 24mA, 24mA | 24mA, 24mA | 32mA, 32mA | 24mA, 24mA |
| Logic Level - Low | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | - | 0.7V ~ 0.8V |
| Logic Level - High | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V | - | 1.6V ~ 2V |
| Max Propagation Delay @ V, Max CL | 2.3ns @ 3V, 30pF | 3.3ns @ 3V, 30pF | 2.3ns @ 3V, 30pF | 2.3ns @ 3V, 30pF | 4.3ns @ 5V, 50pF | 3.3ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-MicroPak2™ | 6-MicroPak2™ | 6-MicroPak2™ | 6-MicroPak2™ | 6-MicroPak2™ | 6-MicroPak2™ |
| Package / Case | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN |
