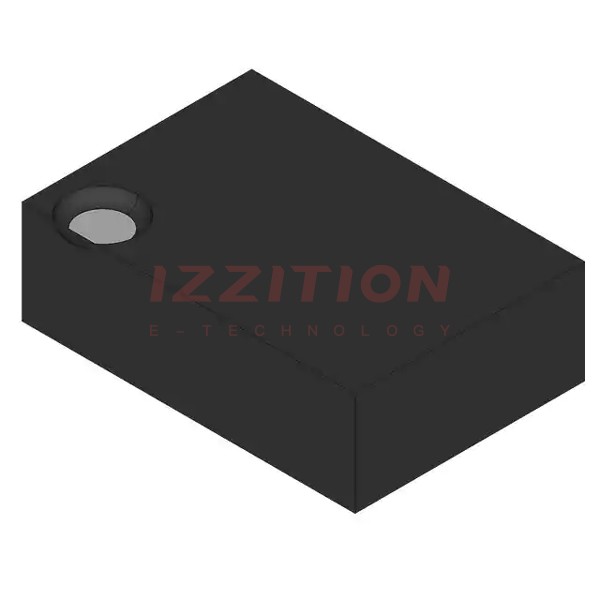

| Part Number | NC7SU04L6X | NC7SV04L6X | NC7SVU04L6X | NC7SZ04L6X | NC7S04L6X | NC7SP04L6X | NC7SPU04L6X | NC7ST04L6X |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | onsemi | onsemi | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Obsolete | Active | Active |
| Logic Type | Inverter | Inverter | Inverter | Inverter | Inverter | Inverter | Inverter | Inverter |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - | - | - |
| Voltage - Supply | 2V ~ 6V | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 1.65V ~ 5.5V | 2V ~ 6V | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 900 nA | 900 nA | 2 µA | 1 µA | 900 nA | 900 nA | 1 µA |
| Current - Output High, Low | 2.6mA, 2.6mA | 24mA, 24mA | 24mA, 24mA | 32mA, 32mA | 2.6mA, 2.6mA | 2.6mA, 2.6mA | 2.6mA, 2.6mA | 2mA, 2mA |
| Logic Level - Low | 0.3V ~ 1.2V | 0.7V ~ 0.8V | - | - | 0.5V | 0.7V ~ 0.9V | - | 0.8V |
| Logic Level - High | 1.7V ~ 4.8V | 1.6V ~ 2V | - | - | 1.5V | 1.6V ~ 2.1V | - | 2V |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF | 2.3ns @ 3V, 30pF | 3.3ns @ 3V, 30pF | 4.3ns @ 5V, 50pF | 17ns @ 6V, 50pF | 9.2ns @ 3.3V, 30pF | 9.2ns @ 3.3V, 30pF | 26ns @ 5.5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-MicroPak | 6-MicroPak | 6-MicroPak | 6-MicroPak | 6-MicroPak | 6-MicroPak | 6-MicroPak | 6-MicroPak |
| Package / Case | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN |
