Please send RFQ , we will respond immediately.
| Part Number | NC7ST32P5 | NC7ST32P5X | NC7S32P5 | NC7ST02P5 | NC7ST32M5 |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Active | Obsolete | Active | Obsolete |
| Logic Type | OR Gate | OR Gate | OR Gate | NOR Gate | OR Gate |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 2 | 2 | 2 | 2 | 2 |
| Features | - | - | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 2V ~ 6V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 2mA, 2mA | 2mA, 2mA | 2.6mA, 2.6mA | 2mA, 2mA | 2mA, 2mA |
| Logic Level - Low | 0.8V | 0.8V | 0.5V | 0.8V | 0.8V |
| Logic Level - High | 2V | 2V | 1.5V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 26ns @ 5.5V, 50pF | 26ns @ 5.5V, 50pF | 17ns @ 6V, 50pF | 26ns @ 5.5V, 50pF | 26ns @ 5.5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

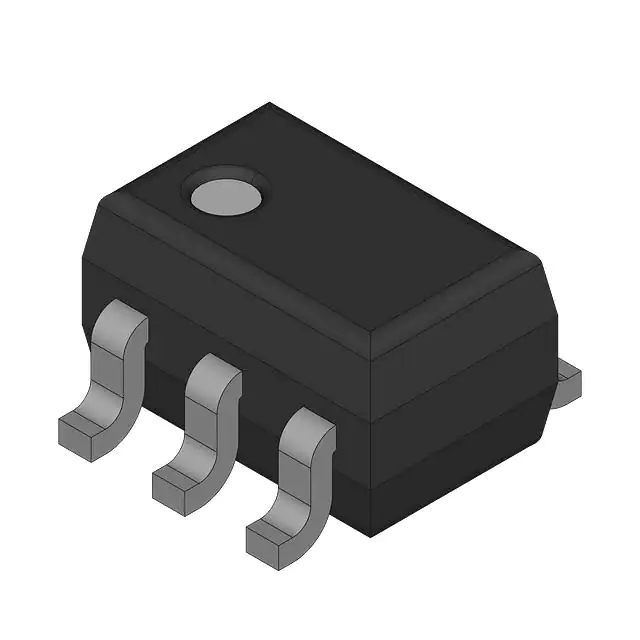

| Supplier Device Package | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SOT-23-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | SC-74A, SOT-753 |
