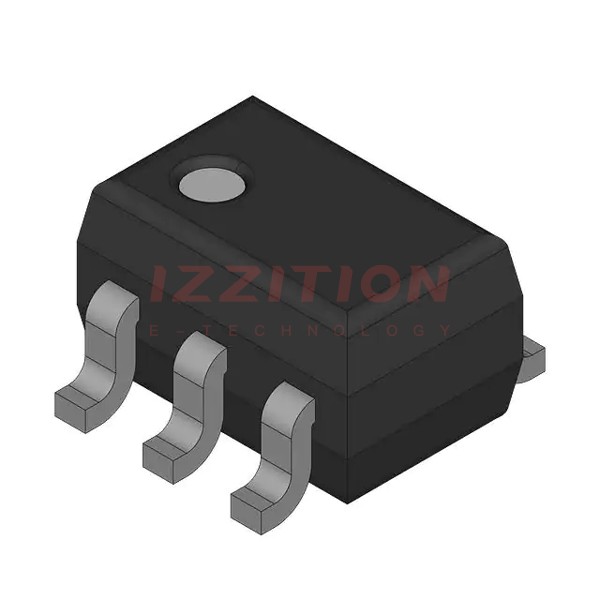

| Part Number | NC7SP04P5X | NC7SU04P5X | NC7SV04P5X | NC7ST04P5X | NC7SP14P5X | NC7SP05P5X | NC7SPU04P5X | NC7SP08P5X | NC7S04P5X | NC7SP00P5X | NC7SP02P5X |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Logic Type | Inverter | Inverter | Inverter | Inverter | Inverter | Inverter | Inverter | AND Gate | Inverter | NAND Gate | NOR Gate |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 2 | 2 |
| Features | - | - | - | - | Schmitt Trigger | Open Drain | - | - | - | - | - |
| Voltage - Supply | 0.9V ~ 3.6V | 2V ~ 6V | 0.9V ~ 3.6V | 4.5V ~ 5.5V | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 2V ~ 6V | 0.9V ~ 3.6V | 0.9V ~ 3.6V |
| Current - Quiescent (Max) | 900 nA | 1 µA | 900 nA | 1 µA | 900 nA | 900 nA | 900 nA | 900 nA | 1 µA | 900 nA | 900 nA |
| Current - Output High, Low | 2.6mA, 2.6mA | 2.6mA, 2.6mA | 24mA, 24mA | 2mA, 2mA | 2.6mA, 2.6mA | -, 2.6mA | 2.6mA, 2.6mA | 2.6mA, 2.6mA | 2.6mA, 2.6mA | 2.6mA, 2.6mA | 2.6mA, 2.6mA |
| Logic Level - Low | 0.7V ~ 0.9V | 0.3V ~ 1.2V | 0.7V ~ 0.8V | 0.8V | 0.1V ~ 0.6V | 0.7V ~ 0.9V | - | 0.7V ~ 0.9V | 0.5V | 0.7V ~ 0.9V | 0.7V ~ 0.9V |
| Logic Level - High | 1.6V ~ 2.1V | 1.7V ~ 4.8V | 1.6V ~ 2V | 2V | 0.6V ~ 2.6V | 1.6V ~ 2.1V | - | 1.6V ~ 2.1V | 1.5V | 1.6V ~ 2.1V | 1.6V ~ 2.1V |
| Max Propagation Delay @ V, Max CL | 9.2ns @ 3.3V, 30pF | 17ns @ 6V, 50pF | 2.3ns @ 3V, 30pF | 26ns @ 5.5V, 50pF | 9.2ns @ 3.3V, 30pF | 10ns @ 3.3V, 30pF | 9.2ns @ 3.3V, 30pF | 9.2ns @ 3.3V, 30pF | 17ns @ 6V, 50pF | 7ns @ 3.3V, 30pF | 7ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 |
