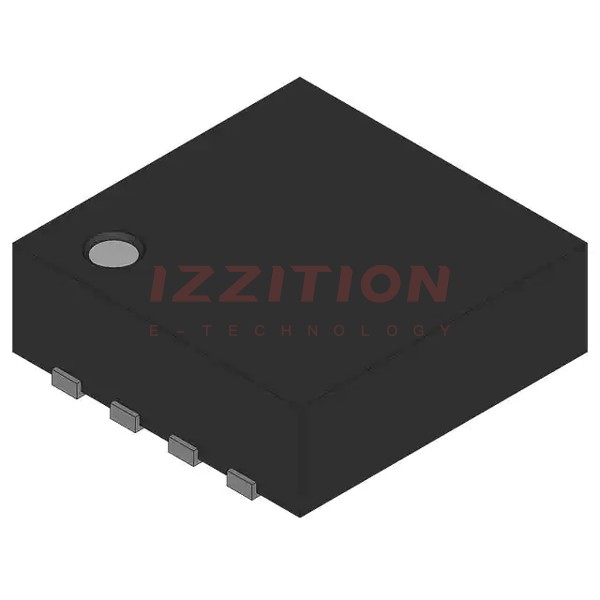

| Part Number | NC7NP14L8X | NC7NZ14L8X | NC7NP04L8X |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | Fairchild Semiconductor |
| Product Status | Active | Obsolete | Obsolete |
| Logic Type | Inverter | Inverter | Inverter |
| Number of Circuits | 3 | 3 | 3 |
| Number of Inputs | 3 | 3 | 3 |
| Features | Schmitt Trigger | Schmitt Trigger | - |
| Voltage - Supply | 0.9V ~ 3.6V | 1.65V ~ 5.5V | 0.9V ~ 3.6V |
| Current - Quiescent (Max) | 900 nA | 1 µA | 900 nA |
| Current - Output High, Low | 2.6mA, 2.6mA | 32mA, 32mA | 2.6mA, 2.6mA |
| Logic Level - Low | 0.1V ~ 0.6V | 0.25V ~ 1.2V | 0.7V ~ 0.9V |
| Logic Level - High | 0.6V ~ 2.6V | 1.5V ~ 3.6V | 1.6V ~ 2.1V |
| Max Propagation Delay @ V, Max CL | 9.2ns @ 3.3V, 30pF | 5.9ns @ 5V, 50pF | 9.2ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-MicroPak™ | 8-MicroPak™ | 8-MicroPak™ |
| Package / Case | 8-UFQFN | 8-UFQFN | 8-UFQFN |
